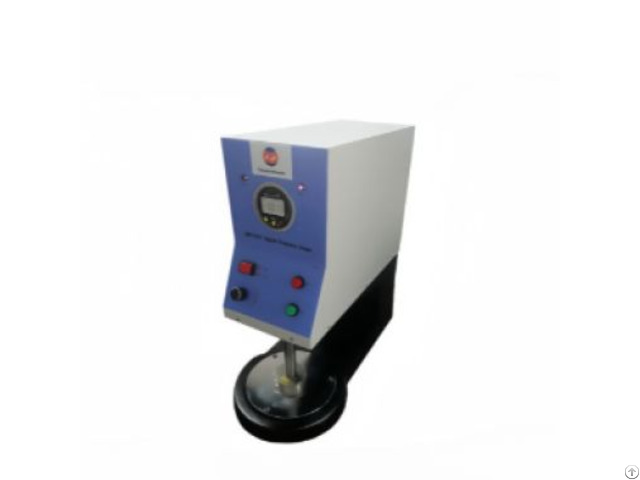

Geomembrane Thickness Tester - China

Scope of Application:

Used to determine the thickness of smooth geomembrane and other plastic films under specified pressure and time.

The sample is placed on the reference plate, and after a specified pressure is applied to the sample for a certain period of time with a circular press foot parallel to the reference plate, the vertical distance between the two plates is measured, and the geomembrane thickness is expressed as the average value of the test results.

Instrument Features:

Design and manufacture according to the standard, in line with the standard specifications; With single and continuous measurement functions; Press foot electric lifting, easy to operate; Prescreening time can be set in advance to reduce manual error; Using dial gauge measurement, high precision; Measurement value digital display, easy to read.

Technical Parameters:

Measuring range 0.001mm——20mm Minimum division value 0.001mm Press foot diameter of medium 10mm or medium 6.35mm Working pressure 2+0.01kPa, 20+0.1kPa, 200+1kPa Power supply AC 220V 50Hz Overall dimensions 440x210x395mm Weight 28kg Standard configuration: 1 - One host 2 - One power cable 3 - One medium 10mm press foot 4.16.02g weight (2Kpa)1 5.80.1g weight (20Kpa)2 6.801g weight (200Kpa)2 PCS 7 - Product packing list 1 copy 8 - Product description: 1 book 9 - One copy of product certificate
