Gzg Series Vibrating Feeder China - China

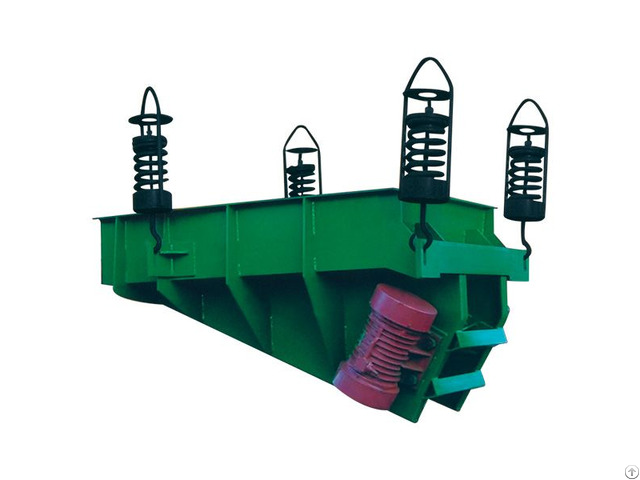

GZG Series Vibrating Feeder

Industry solutions:

GZG Series Vibrating Feeders are widely used in feeding and conveying all types of bulk materials.

The feeders can be installed below hopper and silos to feed material continuously or intermittently, or can be used to simply transfer material.

Main Feature:

● Driven by out-of-balance motor, adjustable stroke by changing the out -of- balance setting of the motor

● Installed at angles of up to 12ºabove or below the horizontal.

● Varying the speed of the motor by using a frequency controller.

● industrial Vibrating Screen Feeder trough is lined replaceable liners made from stainless steel, rubber or aluminum tile and so on.

● The feeder can be either food mounted or suspension mounted using rubber springs or coil springs.

● Feeder trough width300mm-2000mm, length300mm-4500mm

● 1000-1500 rpm frequency range

● 2-7mmstroke

● Handling -300mm material

Company Contact:

• Posted By: Anshan Heavy Duty Mining Machinery Co., Ltd.

• Phone: 15242102697

• Address: No.294 Anqian Road,High-tech Zone, anshan , LIAONING , China

• Email:

• Website: https://www.screensaz.com

• Business Description: Founded in 1994, Anshan Heavy Duty Mining Machinery Co., Ltd. is the vibrating screen base in China and leading company in vibrating screen industry.

  Its registered fund is 232 million RMB and has 600 staffs.

  It was listed on A share market in China in 2012 - It is the only listed company in vibrating screen industry in China.

  Having a large product range including vibrating screen, crusher, feeder, ball mill, asphalt mixing plant, PC production line, trash separation complete plant, etc.

  Up to now, 30 series and over 900 specifications of vibrating screens have been developed widely used in all domestic and international industries such as coal ore, iron ore&steel plants, metallurgy&mine, power station, building material, road construction and so on across the country of thirty-two provinces, cities and autonomous region and exported to the overseas such as Australia, Russia, Chile, Peru, Japan, Saudi Arabia, India, Algeria, Turkey, Kazakhstan, Zambia, Tajikistan, Indonesa, Iran, Singapore, Malaysia, Philippines, Mongolia, Vietnam, Papua New Guinea, Congo, Kyrgyzstan,Burma,etc.

  We have CE Certification, ISO9001 Certification,, ISO14001 Certification, OHSAS 18001 Certification.

  The China Professional Standards of vibrating screen, 53% of the whole 23 professional standards are presided and drafted by our company.

  Furthermore, we possess 32 patents.

  The ZKK series wide deck linear vibrating screens possess high production capacity which can achieve the sum total of many common types screens working jointly.

  In 2008, the 5.05m×11.32m Amplitude Descending Elliptical Vibrating Screen was evaluated the biggest vibrating screen in the world among the same type.

  Our Products:

  - gjzkk series large linear vibrating screen

  - gjzx series banana linear vibrating screen

  - y a k q series double shaft forced synchronization elliptical vibrating screen

  - yag series circular vibrating screen

  - gdzs units combination vibrating screen
