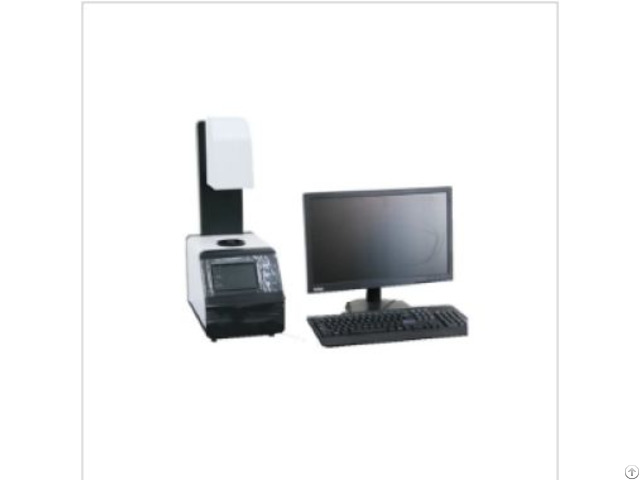

Haze Meter - China

Standard The Haze Meter STDYH40 adheres to global standards including ASTM D1003/1044, ISO 13468/14782, JIS K7105, and GB/T 2410, ensuring compliance with rigorous quality control protocols.

Designed for transmittance (0–100%) and haze (ASTM/ISO) measurements, it meets the demands of industries such as glass processing, automotive coatings, pharmaceutical packaging, and display manufacturing.

Certified for CIE D65, A, and C illuminants, it guarantees consistent results across lighting conditions.

Product Advantages

Multi-Angle Flexibility

Open measurement zone supports vertical and horizontal testing, accommodating samples of varying sizes and shapes.

Simplified Calibration

Single-step 100% calibration reduces setup time, enabling immediate operation.

Versatile Aperture Options

Four interchangeable apertures (Φ20mm/Φ15mm/Φ8mm/Φ4m m) adapt to diverse testing requirements, from films to thick glass.

Unmatched Precision

0.01 resolution and ≤0.02 repeatability ensure reliable data for critical QC decisions.

Portable & Ergonomic

Compact 1.3kg design with anti-slip grip and 238mm height for comfortable handling in labs or production lines.

Intuitive User Interface

3.5" TFT capacitive touchscreen auto-rotates based on device orientation, minimizing operator fatigue.

Dual Measurement Modes

Switch between single-shot and average (2–99 scans) modes for customized workflows.

Full-Spectrum LED Illumination

400–700nm LED array meets CIE D65, A, and C standards for accurate haze/transmittance analysis.

Dual-Standard Compliance

Supports ASTM and ISO methodologies, bridging international quality requirements.

Advanced Data Management

Includes HQC Software for generating professional reports, tracking trends, and exporting data in multiple formats.

Product Features

Optical System: 0/D geometry with 90mm integrating sphere for diffuse light capture.

Sensor: PD array detector with CIE V(λ) 2° visual response for human-eye-matched results.

Measurement Range: 0–100% transmittance with 0.01% resolution.

Haze Metrics: ASTM D1003/ISO 13468-compliant haze calculation for transparent/semi-transpar ent materials.

Sample Handling: Accepts samples up to 40mm thick (e.g., laminated glass, injection-molded plastics).

Connectivity: USB and Bluetooth for real-time data transfer to PCs/tablets.

Power: 5000mAh lithium battery with 8-hour runtime (5000+ scans).

Durability: LED light source rated for 3M+ measurements (5+ years).

Display: Pass/Fail indicator for instant QC verification.

Environmental Resistance: Operates in 0–40°C (32–104°F) conditions.

Technical Parameters

Specification Details

Model STDYH40

Geometry 0/D (parallel illumination, diffuse reception)

Apertures Φ20mm, Φ15mm, Φ8mm, Φ4mm (interchangeable)

Wavelength Range 400–700nm (full-spectrum LED)

Transmittance Range 0–100% (0.01% resolution)

Haze Standards ASTM D1003, ISO 13468

Observers CIE 2°

Illuminants D65, A, C

Measurement Time 1.5s (single scan)

Repeatability ≤0.02 (Φ20mm, 30 measurements)

Inter-Instrument ≤0.4 (Φ20mm, BCRA calibration tiles)

Dimensions 100 × 129 × 238mm

Weight 1.3kg

Battery 5000mAh Li-ion (8 hours)

Data Storage 1000 standards, 20, 000 samples

Interface USB 2.0, Bluetooth 4.0

Languages English, Simplified/Traditional Chinese

Operating Temp.

0–40°C (32–104°F)

Storage Temp.

-20–50°C (-4–122°F)

Accessories Haze Meter STDYH40 Unit

Power Adapter & USB Cable

4x Interchangeable Apertures (Φ20/15/8/4mm)

HQC Quality Control Software (Downloadable)

User Manual & Calibration Certificate Micro-Printer, Test Fixtures, Certified Haze Standards
