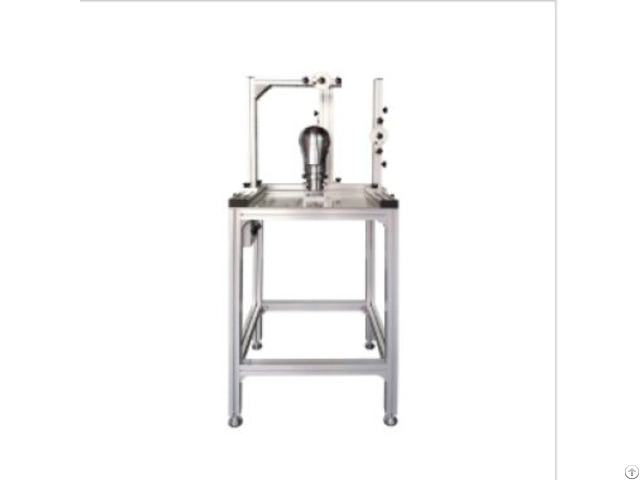

Helmet Visual Field Measurement System - China

Standards

EN 1078: 2023: Helmets for Pedal Cyclists, Skateboarders, and Roller Skaters CE Certification (Conformité Européenne) Equivalent Compliance: ASTM F1446 (Respiratory Protective Devices) Product Advantages

EN 1078: 2023 Compliance 25°+ Upper / 45°+ Lower / 105°+ Lateral Vision: Ensures helmets meet minimum peripheral visibility requirements.

±0.5° Angular Accuracy: Validates visor designs for road/urban safety certifications.

Precision Engineering 360° Rotational Stage: Tests visor obstructions from all riding positions.

Auto-Leveling System: Compensates for helmet tilt during dynamic testing.

User-Centric Design 7” Touchscreen HMI: Preloaded EN 1078 test sequences with pass/fail indicators.

Quick-Release Visor Clamp: Swaps samples in seconds for high-volume labs.

Technical Parameters

Parameter Specification

Field of View Upper ≥25°, Lower ≥45°, Lateral ≥105°

Angular Accuracy ±0.5° (ISO 17025 traceable)

Measurement Range 0–360° (horizontal/vertical)

Head Model Quick-swap anthropomorphic mandible

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 800mm (W) × 600mm (D) × 1.500mm (H)

Weight 120 kg (net)
