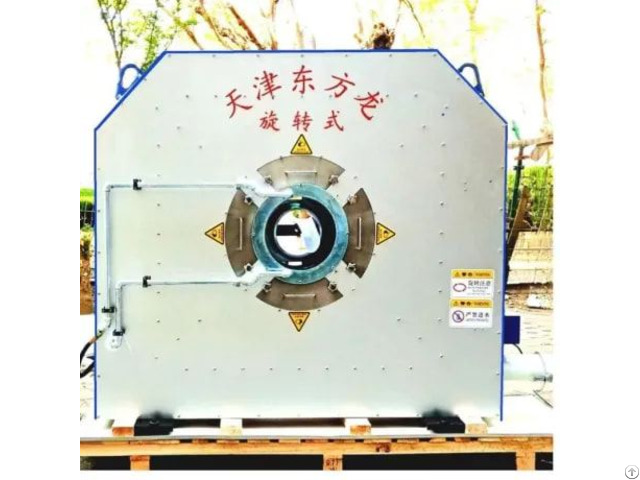

High Efficiency Automatic Ovality Measuring Instrument Gdc J2200 Jx - China

Maximize your precision and productivity with our High Efficiency Automatic Ovality Measuring Instrument.

This state-of-the-art tool is designed to offer unparalleled accuracy and efficiency in measuring the ovality of cylindrical objects, making it ideal for high-precision applications in manufacturing and quality control.

Purpose: Real-time online inspection of geometric dimensions of high-speed wire rods, square steel, flat steel, etc.

in a red-hot state, and transmit the inspection results to the display terminal in real time.

When the measurement data is abnormal, the system will issue an audible and visual alarm.

Provide intelligent appearance and dimensional inspection services for rolled steel.

Parameter Specification

Measured object varieties rods and wires, square steel, flat steel

Measurement principle laser scanning method

Measurement method rotary measurement

Measurement frequency 800–1600

Rotation speed 30 rpm

Installation method fixed or mobile

Standard equipment configuration The entire set of equipment comes standard: control cabinet, measuring vehicle, electrical control box, LED display, cooling and dust removal system and supporting facilities

Adaptable rolling speed ≤120m/s

Adaptable rolling temperature ≤1200℃

Measuring range 5–200mm

Allowable deviation ≤±0.04

Installation location after intermediate rolling mill or finishing rolling mill

How This Rotary Diameter Gauge Works: Laser Scanning Principle

The GDC-J2200-JX rotary diameter gauge uses the laser scanning diameter gauge method — a rotating head continuously sweeps laser beams around the bar's full cross-section.

Unlike fixed instruments, this rotating diameter measuring instrument eliminates blind spots entirely, making it the most reliable solution for online steel bar measurement in high-temperature rolling environments.

1 - Laser beam projection

High-frequency laser beams are projected across the bar's cross-section as the measurement head rotates continuously around the pass line.

2 - Photoelectric scanning & triangulation

Precision photoelectric receivers capture the shadow width at each rotational angle.

Triangulation algorithms calculate exact dimensional coordinates.

3 - Real-time data transmission

Measurement results are transmitted to the display terminal via single-mode fiber optics.

Alarms trigger instantly when any dimension exceeds tolerance.

4 - Full ovality calculation

With 360° data, the system calculates diameter, ovality, and profile deviation simultaneously — not possible with fixed-angle gauges.

What Can This Laser Scanning Diameter Gauge Measure?

As a rotating diameter measuring instrument, the GDC-J2200-JX covers the full range of hot-rolled long products in bar & wire rod mills.

One rotary diameter gauge handles multiple product profiles with software-selectable measurement modes — making it the most versatile solution for online steel bar measurement.

Round Bar：Primary application.

Full-circle diameter measurement at every cross-section.

Flat Bar：Width & thickness measurement.

Oscillating mode captures dimensional variation across the full profile.

Square Bar：Side-length measurement for square billets.

Detects asymmetric deviation in real time.

Wire Rod：High-speed measurement up to 120m/s.

Ideal for wire rod finishing blocks on bar & wire mills.
