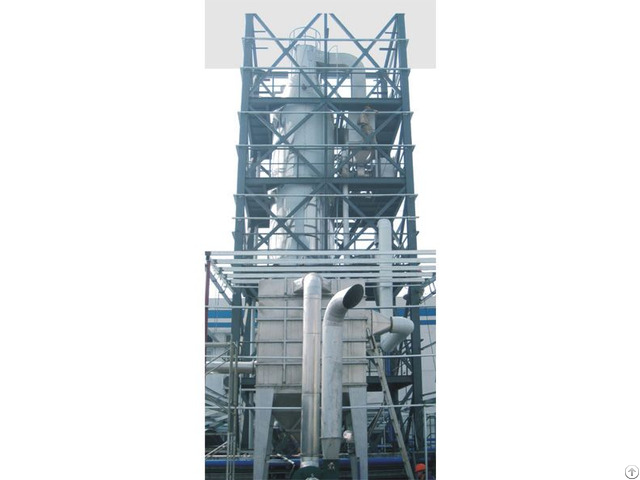

High Pressure Spray Dryer - China

◆This set is an apparatus that can finish drying and granulating at the same time.

The needed ball granule with certain size and ratio can be got in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.

◆ The working process of this set is as follows: the liquid of raw material is pumped in through diaphram pump.

The liquid of raw material is atomized into tiny droplets.

Then it falls down with hot air in co-current form.

Most parts of powder material is collected through the discharge port at the bottom.

The exhaust and fine powder are separated by going through the cyclone, and the exhaust is discharged by draft fan.

The outlet of fan can also be equipped with two grades of duster.

And its recovery ratio will be 96-98%.

◆ The tower body, pipes and separator of this set contacting with raw material are made of SUS304 - There is enough layer of heat preservation between inner and outer case of tower body.

The filled material is fine glass cotton.

The tower body is also equipped with observation door, sight glass, lamp-house and control meters and instruments that are controlled and displayed through electric control panel.
