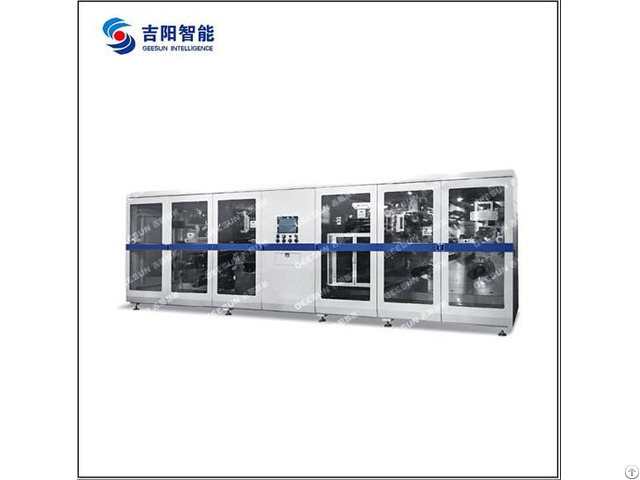

High Speed Li Ion Battery Electrode Notching Machine Laser Tabs Cutting Maching - China

High Speed Li-ion Battery Electrode Laser Notching Machine Laser tabs cutting maching Features

1> Highest operation efficiency in the industry.

Mass production: ≥ 80m/min, Technical reserve: ≥ 200m/min

2> Highest cutting accuracy in the industry: Tab distance accuracy ≤±0.1mm

3> Optimal de-dusting effect: Standard cleanliness： class 10, 000 Technical Parameter

Cutting Speed: 60m/min ~ 200m/min​​​​​†‹

Cutting Accuracy: ±0.2mm, ±0.1mm (tabs distance)

Slitting Accuracy: ±0.3mm

Correction Accuracy​​​​​†‹: ±0.1mm

Heat-Affected Zone: Cathode ≤100㎛, Anode ≤150㎛

Tension Control: ≤±3N, ≤±5%

Burr: ≤15 ㎛ horizontal, ≤7 ㎛ vertical

Yield: ≥99.5%

DT: ≤2% Geesun Developed:

The World’s first Laser notching ( tab forming ) machine In 2008, The World’s first Laser cleaning machine in 2015, The World’s highest speed 200m/min Laser notching ( tabs forming ) machine in 2022 Core Advantaegs:

1> High Precision Control System

2> Tension Control System

3> Thin Cu & Al Foil Cutting

4> Efficient Dust Removal System

5> Segmented Laser Cutting

6> S-shaped Laser Cutting Process

7> Cathode Laser Cutting Plan

8> Dual Laser Slitting Solution Geesun has become the strategic cooperative supplier of CATL, so far, 600+ sets of laser tabs cutting machines, winding machines &

lamination stacking machines have been delivered to CATL since 2020.

Company Contact:

• Posted By: Shenzhen Geesun Intelligence Technology Co., LTD.

• Phone: 86075527885958

• Address: Building D,EF Dejin Industrial Park, No. 40 Fuyuan 1st Road, shenzhen , Guangdong , China

• Email:

• Website: https://www.geesun.com

• Business Description: Shenzhen Geesun Intelligence was established in 2006, currently with 3000+ employees and 156,000+ sqm manufacturing, R&D, and administration facilities.

  The new Geesun intelligent manufacturing base is under construction covering a space of 213.333 sqm, equals to the size of nearly 30 soccer fields.



  Geesun Intelligence focus on the R&D, manufacturing, sales and services of the Lithium-ion battery cells assembly and formation.

  The main product portfolio are:

  1> Laser notching/ tabs cutting machine,

  2> Winding machine for prismatic and cylidrical cells.

  3> Lamination stacking machine,

  4> Formation and grading productoin line and machine

  After 16+ years of development and laser-like focus in the field of lithium-ion battery manufacturing equipment, Geesun Intelligence has acquired 800+ patents, including 38 international patent and 54 software copyrights.

  Also, as one of the earliest company to ever enter the li-ion battery manufacturing equipmnt industry, Geesun Intelligence has become a leader in the industry.

  We have led and participated in the formulation of 64 standards, including 22 national standards, 6 industry standards and 2 international standards.

  As a capable and responsible equipment manufacturer, we are the trusted and proud machinery supplier to 6 of the Top 10 lithium-ion battery/power battery manufacturer in the world, including CATL, BYD,Gotion, CALB,Sunwoda, Svolt and so on.
