High Speed Steel Wire Straightening And Cutting Machine - China

Cut steel wire diameter 2-6mm

Cutting length range: more than 20mm

Wire feeding speed: adjustable speed 20-40 m/min

Length error: ±0.5mm within 500mm (add 0.5mm for each 500)

Aligning wire: common carbon steel wire

Feeding rack: 900*900*500

Wire feeding motor: 1.5KW with reducer

Straightening motor: 3KW-2P

Servo motor: 0.75KW, 1500 RPM

Guide rail module: Taiwan Seiko

Ball screw module: Heqing, Taiwan

Number of wire feeding sets: 2 sets (4 pairs of wheels)

Control screen: touch screen

Number of aligning blocks: 8

Oil pump motor: 1.5KW

Cutting off cylinder: MOB63-20

Wire range: 2~6mm (ordinary carbon steel)

Rack size (L * W * H) : 2670*710*1450 (mm)

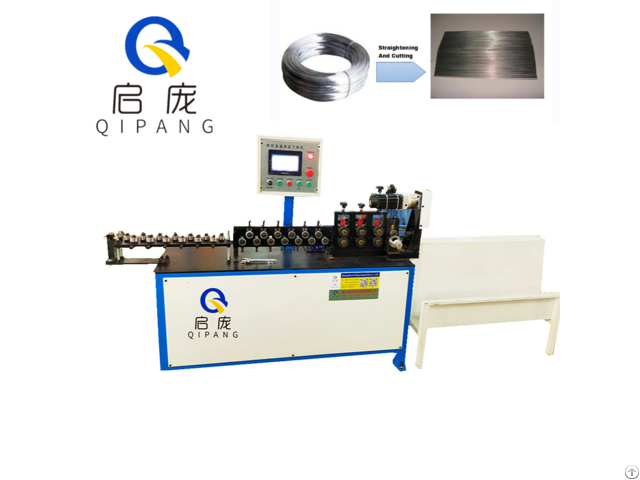

High speed steel wire straightening and cutting machine

This device can be suitable for all kinds of metal wire straightening cutting, surface, no scratches, cutting length error of 0.2-0.5 mm, the cutting length range is 80mm to 6000mm.

Human-machine incorporate touch screen control system, can save manpower for the customer.

Company's main range of wire 1 mm to 5 mm can be customized, fastest of up to 150 meters per minute, available for copper, iron, aluminum, gold, silver, stainless steel, high carbon steel and plastic coated wire, metal wire.

If you want faster speed, please contact customer service.

If you are concerned about the straightening effect, we can provide free proofing.

Configuration parameters of high speed straightener, 1 two servo motors, 1.5 kw traction and 1: 10 planetary reducer, cut off 1.5 kw, 2 cut off the PLC touch screen electronic CAM system, 3 servo motor brand, servo motor

4 fuselage length 1850mm wide 780mm total height 1300mm.

It weighs about 498 kilograms.

5 the total weight of the automatic spreader is 90kg.

6 - The control mode includes inverter analog control system, 7 - Minimum diameter: 250mm; maximum diameter: 500mm;

8 the weight of the spreader is about 90kg" Type and wire diameter: QP-φ0.2-1mm QP-φ1-6mm QP-φ7-12mm Cutting range: 10mm – 99999mm Max cutting speed: 200pcs/min

400 pcs/min Wire feeding speed: 20-60m/min 20-80m/min 20-60m/min Wire material: Common carbon steel wire and stainless steel wire Accessories: Withdrawable wire rack, Movable receiving pocket, Recommended automatic wire rack for lines above 3.0 Feeding stand: 1000*300*150 Feeding motor: 2.0kw servo motor Straightening motor Custom adjustable speed motor 3KW/2880r Cutting shear motor: 2.8KW Cut off servo motor Rail module: Nextron Number of feeding rollers: 2 group (4 pairs rollers) HMI: 7 inch touch screen Number of straightening rollers: 8 pcs
