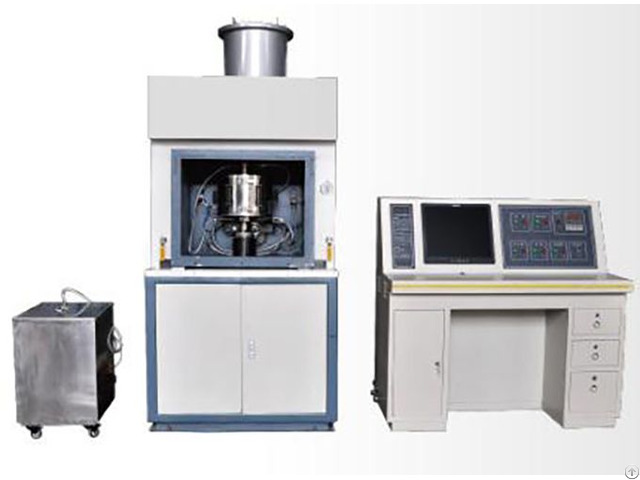

High Temperature Vacum Friction And Wear Testing Machine - China

High temperature vacuum friction and wear testing machine is mainly used to study the friction and wear characteristics of materials in high temperature and vacuum environment.

Its exquisite design and comprehensive functions can simulate a variety of practical conditions and provide reliable experimental data for researchers.

Specifically, the main uses of the testing machine include: Materials science research: By simulating the friction and wear process under high temperature vacuum environment, we can deeply explore the friction and wear mechanism of materials, and provide experimental support for theoretical research and application development of materials science.

Aerospace applications: When spacecraft operate in high temperature and vacuum environments, the friction and wear properties of their components are critical.

The testing machine can be used to evaluate the high temperature vacuum friction and wear resistance of aerospace materials, and provide a basis for the selection and design of components.

Parameters

Parameters Unit min max note

Pin/Ball Diameter mm 3 12 Round or square pins

Wear track diameter mm 15 70 Disk diameter 100 mm

Rotational speed of the disk rpm 1 2000 0.1rpm Minimum Count

Positive load N 0 60 50 mN Minimum Count

friction N 0 20 5mN Minimum Count

temperature ℃ indoor temperature 800 1°C Minimum Count

Wear test range um 0 2000 0.1μm Minimum Count

disk vibration Stroke Vibration degrees 0 0 1 degree minimum count

angular frequency Hz 0.1 5 Preset Timer Hr/Min/ ec 99/59/59 Battery V/kVA/Ph/Hz 230/10/1/50
