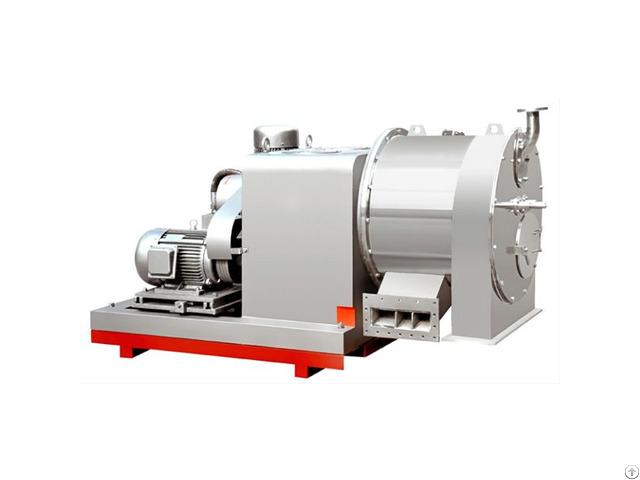

Horizontal Piston Pusher Centrifuge Machine - China

The main motor drives the inner and outer bowls to turn at full speed.

The materials are continuously introduced from the feeding pipe and are evenly spread onto the inner filter screen wall of the inner bowl.

Under the action of centrifugal force, after passing through the filter screen and bowl filtration pores, the liquids are discharged outside the machine from the liquid discharging pipe.

The solids are retained in the inner bowl and form circular filter cakes.

When the inner and outer bowls are turning at the same speed, the inner bowl is pushed by the piston to continuously make axial reciprocating movements.

Thus, the pushing disc pushes the filter cakes at the inner bowl to continuously move outwards and enter the outer bowl for further separation and formation of circular filter cakes after they are discharged outside the inner bowl.

The outer face of the inner bowl will push the filter cakes at the outer bowl to continuously move outwards until they are
discharged outside the outer bowl.
