Hot Selling For The Market Pz 5b Explosion Proof Shotcrete Machine - China
price: 3245.00 Dollar US$
Explosion-proof shotcrete machine, PZ-5BExplosion-proof shotcrete machine
Features of PZ-5B Explosion-proof Shotcrete Machine
1 - PZ-5B Explosion-proof Shotcrete Machine adopt through type rotary, so that can fulfill non-sticky, unobstructed discharging operation, finally get advantages of high efficiency and time-saving.
2 - Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to reduce air and dust leak and prolong consumption parts life., 3 - Using low-tension, high-speed vortex pneumatic transportation, so the spraying flow is even, continuous and steady.
It's good to improve the shotcrete quality.
4 - The new nozzle, discharge elbow device, improving spray deposition effect, less resilient, high quality shotcrete.
Parameter of PZ-5B Explosion-Proof Shotcrete Machine
Item PZ-5B
Output 5m3/h
Max.
convey dist Horizontal: 200m Vertical: 20m
Water cement ratio ≤0.4
Max.
Aggregate.
size 20mm
Hose inner size 51mm
Operating air pressure 0.4~0.6MPa
Air consumption 7-8 m3/min
Rotor diameter 438mm
Motor power Y132m-6-5.5(KW)
Voltages 380v or as your requirement
Overall dimension(mm) 1600X700X1150
Whole weight 800kgs

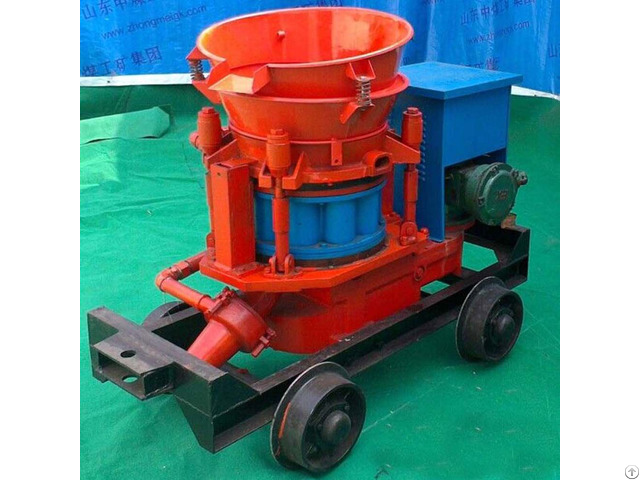

Pictures of PZ-5B Explosion-Proof Shotcrete Machine
