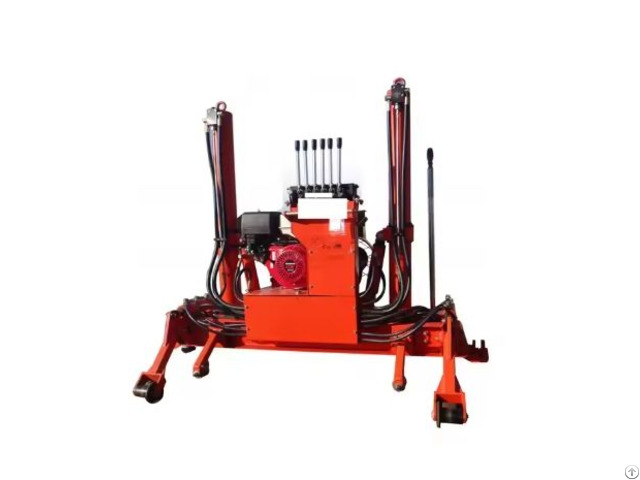

Hydraulic Rail Lifting And Lining Machine - China
price: contact company for price
Hydraulic Rail Lifting and Lining Machine The Rail Lifting and Lining Machine has the fuction of ifting and lining.
Its structure is simple, light, flexible, safe and reliable.
This machine is powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.
BENEFITS When the two lifing cylinders stand upright, the lifing operation can be carried out When a lifing cylinder is tited out, the track can be dialed Adopt Honda GX390 gasoline engine as the power, the rail hook device adopts gear-engaged double hook synchronous rail clamping mechanism.
The starting, cylinder, rail hook cylinder, traveling cylinder, and tilt cylinder are all hydraulicaly controlled.
SPECIFICATION Engine Honda GX390, 6.6 kW
Max.
lifting force 150 kNx2
Max.
lining force 130 kN
Max.
lifting stroke 1020 mm
Max.
lining stroke ≥310mm/time
System pressure 20 MPa
Operation handle working force ≤200N
Dimensions 1760x900x1500 mm
Weight 550 kg
Size 1760x900x1500 mm
Company Contact:
- Posted By: Wuhan Linkage Track Equipment Co.,Ltd
- Phone: 15925241229
- Address: 1007, Block B, Building 1, Modern Service Base, Huagong Science Park, Daxueyuan Road, Donghu New Tec, wuhan , Hubei , China
- Email:
- Website: http://linkagetrack.com/
Published date: March 11, 2024
- Business Description: Wuhan Linkage Track Equipment Co,Ltd is a professional manufacture of an extensive range of equipment for the railway industry.
Linkage Group strive to provide One-Stop service for global railway maintenance.
Our company has expanded its operation to three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou,China.
We export to over 60 countries,like Alstom ,Hitachi Rail,Colas Rail ,ETF, CCR METRO,BHP ,VALE,and EFE etc.
