Hydraulic Rail Tensor - China
price: contact company for price

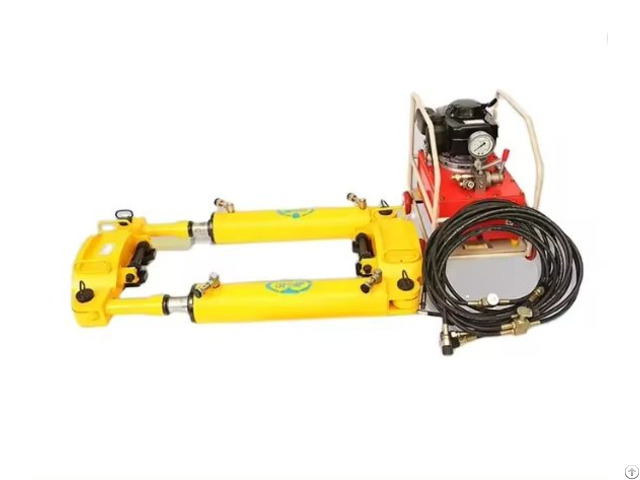

Railway Hydraulic Rail Tensor for Rail Stretching
Hydraulic Rail Tensor
It’s suitable for 75kg/m and 60kg/m type rail stress relief and seamless long rail relaying.
While operating in the field at a certain temperature range being lower than the rail locking temperature, by employing this machine, the length of a rail with zero-stress can be forced to stretch to a length at locking temperature, then re-lock the rail.
SPECIFICATION
Model YLS-900I
Material Stainless Steel
Dimensions (L x W x H) (mm) 1300*690*240mm
Max.
rated working pressure 57Mpa
Max.
rail pulling force 2*450kN
Max.
stroke of working cylinder ≥500mm
Two pull rod center distance 535mm
Lock mode wedges clamp on both sides of rail head
Pump model Honda GXV160
Power 3.05kW
Rate of flow ≥3L/min
Machine weight 283kg
Internal combustion pump station weight 75kg (not including pipeline)
Company Contact:
- Posted By: Wuhan Linkage Track Equipment Co.,Ltd
- Phone: 15925241229
- Address: 1007, Block B, Building 1, Modern Service Base, Huagong Science Park, Daxueyuan Road, Donghu New Tec, wuhan , Hubei , China
- Email:
- Website: http://linkagetrack.com/
Published date: March 11, 2024
- Business Description: Wuhan Linkage Track Equipment Co,Ltd is a professional manufacture of an extensive range of equipment for the railway industry.
Linkage Group strive to provide One-Stop service for global railway maintenance.
Our company has expanded its operation to three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou,China.
We export to over 60 countries,like Alstom ,Hitachi Rail,Colas Rail ,ETF, CCR METRO,BHP ,VALE,and EFE etc.
