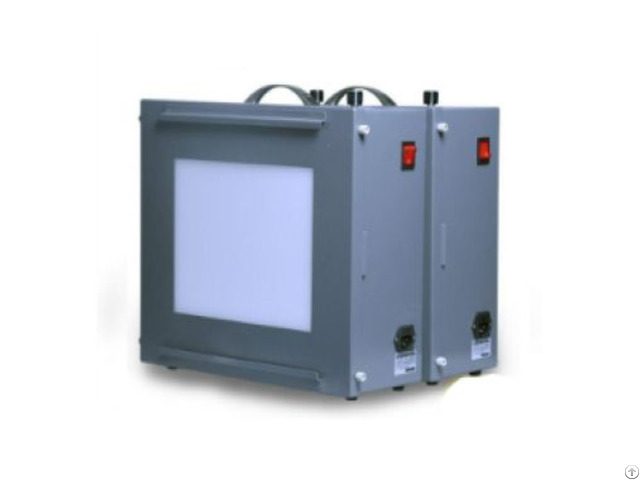

Image Test Standard Transmission Light Box Iso 3664 - China

Standard

CIE 15: 2004: Adheres to colorimetry standards for spectral measurement.

ISO 3664: 2009: Compliant with viewing conditions for graphic arts and photography.

IEC 62471: Meets photobiological safety requirements for LED lighting.

Product Features

LED System: DC-Driven Chips: Eliminates flicker up to 30.000 Lux.

6.500K ±100K Output: Matches D65 daylight standard.

Optical Design: Diffusion Panel: Hollow-glass bead technology reduces hotspots by >90%.

Test Chart Slot: 360mm × 285mm compartment for ISO 12233/SFRplus charts.

Control Interface: Detented Dimming Knobs: Tactile feedback for repeatable settings.

Digital Display: Real-time Lux/CRI/color temp readout.

Safety Systems: Overcurrent protection (2A fuse).

Residual current device (RCD) for operator safety.

Ergonomics: Adjustable Stand Mount: 1/4”-20 thread for tripod compatibility.

Vented Chassis: Prevents heat buildup during continuous operation.

Accessories & Options

Test Charts: ISO 12233: 2017 resolution chart (magnetic-backed).

SFRplus chart with 20° wedge patterns.

Light Modifiers: Diffusion filters (1/2 - 1/4 - 1/8 stop).

Polarization attachments for glare reduction.

Power Solutions: 12V DC car adapter for field testing.

50m (164ft) extension cables for studio setups.

Consumables: 10 × Replacement diffusion panels.

1L Optical cleaning kit (air blower + microfiber cloths).

Warranty: 24-month manufacturer’s warranty (extendable to 60 months).

Lifetime technical support via global hotline.
