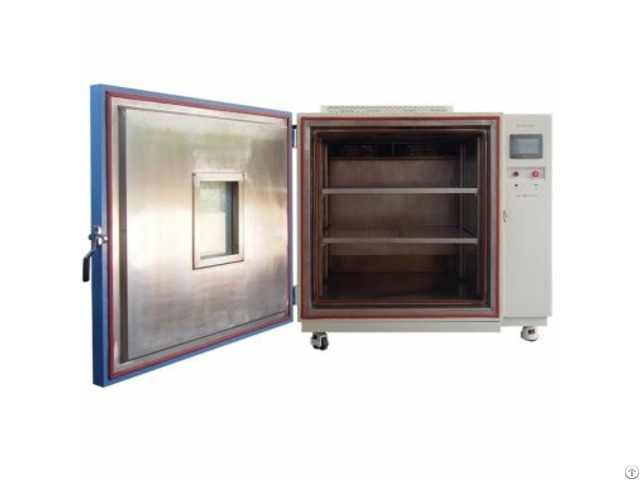

Industrial Oven For Batteries - China

Features and Benefits

1 - Real-time temperature monitoring, temperature range can be customized to +1000 ° C, +1200 ° C, accuracy ±0.5 ° C, uniform distribution ±2%.

2 - The programmable PID control system supports multi-stage temperature curves for complex loop testing.

3 - The enhanced thermal efficiency reduces heating time and minimizes energy consumption.

4 - Flexible workroom size and adjustable sample holder to accommodate various battery types and component sizes.

5 - High temperature performance testing, thermal aging and durability assessment, safety certification testing, material compatibility analysis.

Specifications

Model

STD O-100 STD O-225 STD O-500 STD O-800 STD O-1000 Internal Dimension (mm)

400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000 Overall Dimension (mm)

750*880*850 800*950*1000 1100*1100*1300 1100*1450*1400 1300*1400*1400 Interior Volume

100L 225L 500L 800L 1000L Temperature Range

A: Ambient ～+250 ℃ B: Ambient ～+400 ℃ C: Ambient ～+900 ℃ Temperature Fluctuation

± 0.5 ℃ Temperature Deviation

± 2.0 ℃ Heating Rate

6 ℃ / min Heating Element

Nichrome heater Controller

Programmable color LCD touch screen controller, Ethernet connection Safety Device

Over-temperature Protection; Over-current Protection; Phase Sequence Protection; Earth leakage Protection Exterior Material

Steel Plate with protective coating Interior Material

SUS304 stainless steel Thermal Insulation

Polyurethane foam (Refractory brick) Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing Standard Configuration

2 shelves
