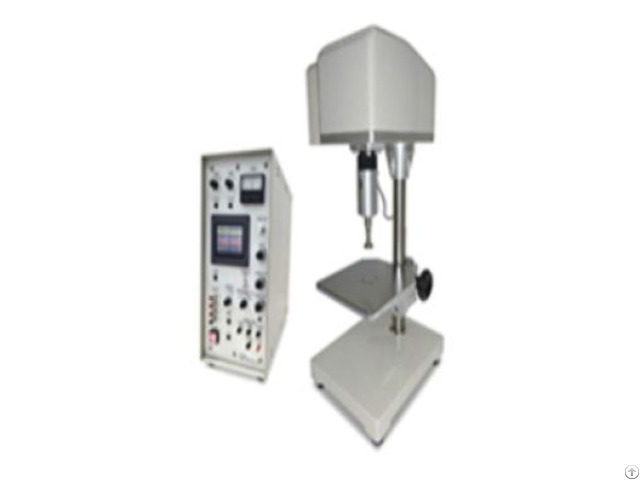

Kes G5 Compression Tester - China

The Compression Tester analyzes hand movements-particularly, movements by finger-performed by artisans and professionals when judging a fabric's texture.

The device performs this movement mechanically, making it possible to obtain objective numerical data while offering more enhanced versatility over the STD-FB3-A Compression Tester.

Obtainable data includes compression rigidity, compression energy, and recover ability.

The machine can be applied to a wide variety of fields and purposes, including determining the softness of disposable diapers and the hardness of mousse.

Features

Various attachment shapes Choose from variously shaped compression sensors tailored to the sample being measured, for silicon material, how easy buttons can be pushed, car seats.

etc.

Parameter

Product Name Compression Tester Dimensions (W × D × H) *approx.

Measuring unit: 190 × 230 × 460 mm Amplifier: 180 × 400 × 400 mm Weight *approx.

Measuring unit: 11 kg Amplifier: 13 kg Power supply, Frequency 100VAC, 50/60Hz Interface KES-USB (optional) PC (optional) *1 Data logger output terminal OS Windows 7/8/8.1/10 Sample size Square sample with a side of 20 to 100 mm (standard)
