Laboratory Use Muffle Furnace - China

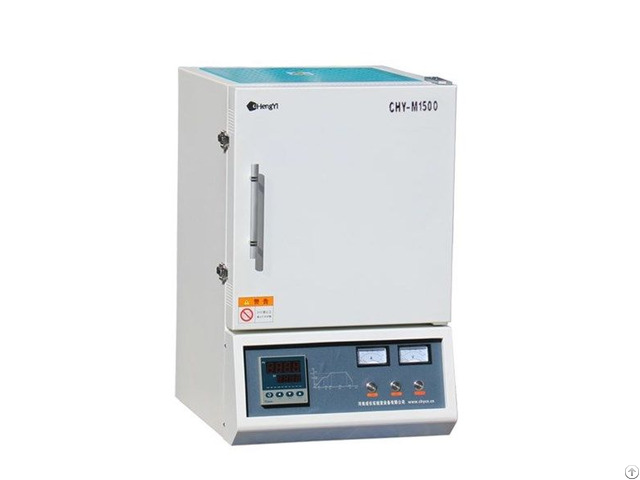

CHY-M1516 High Temperature 1500 degree 4.1L Muffle Furnace Laboratory use muffle furnace 1.160*160*160mm chamber dimension

2 - High quality ceramic fiber chamber

3 - PID Programmable controller

4 - Heavy duty double layer structure

5 - Made by Henan Chengyi CHENGYI-electric muffle furnace APPLICATION

1 - Laboratory heat thermal processing cement, building materials industry etc

2 - Pharmaceutical medicines inspection, preteatment of medical sample

3 - Analytical Chemistry Industry: water analysis and environmental analysis

4 - Analysis of coal quality, determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis PRODUCT PARAMETERS

Safety Operation Regulations of High Temperature Muffle Furnace

1 - The horse boiling furnace should be placed on a solid concrete table, and flammable and explosive products should not be stored around it.

Second, the horse boiling furnace must have a special electric gate control power supply, and the cable specifications used must meet the working current requirements of the equipment.

3 - Burning organic matter, pre-ashing, and then burning in the furnace.

4 - After use, the power must be cut off first, and the door can only be opened after the temperature drops below 100℃.

5 - There should be enough fire-fighting equipment in the working room.

1 Product Name 1500 Degree Muffle Furnace

2 Model M1516

3 Furnace Door side open type

4 Display Model Highlight LED display

5 Maximum Temperature 1350℃

6 Working Temperature ≤1350℃

7 Heating rate ≤20℃/min Suggest: 10℃/min

8 Heating zones Single heating zone

9 Hearth dimensions 160mm×160mm×160mm

10 Hearth volume 4.1L

11 Control mode Intelligent PID auto control

12 Temperature Accuracy ±1℃

13 Temperature curve 30 segments programmable

14 Over heat alarm Have

15 Overcurrent protection Have

16 Thermocouple Failure Protection Have

17 Temperature Sensor S-type thermocouple

18 Heating Element SiC Heating Rod

19 Hearth Material high purity alumina fiber

20 After-sales service 12 month warranty, durable maintaince and repair support

21 Power Supply 220V 50HZ

22 Rated power 3.0kw

23 Overall dimensions 460×530×730 (mm )

24 Packing 3-ply wooden case

25 Accessories Plate, Protective Glove, Crucible Tong, Crucible, Door Block, User Manual.
