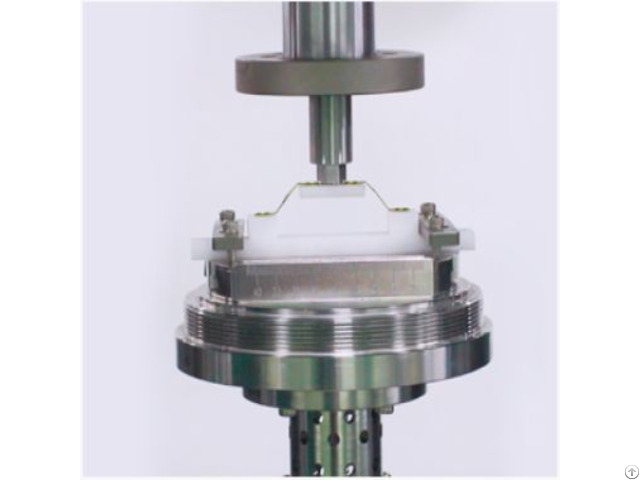

Laminoplasty Plate System Fatigue Testing Machine - China

Standard

ASTM F2193-18: Specifies static/fatigue testing protocols for spinal constructs, including lamina fixation plates.

ISO 12189-1: Defines methodologies for evaluating mechanical performance under physiological loading.

YY/T 0961-2014 (China): Compliance with static/dynamic testing requirements for spinal interconnection systems.

Custom Protocols: Tailored testing regimens for lamina fixation plate bending/compression fatigue per clinical usage models.

Product Advantages

Anatomical Simulation: 4-point bending fixture replicates spinal curvature (0°–45° lordosis adjustment).

Dynamic Compression Control: 0.1–15 Hz frequency range with ±0.05% force accuracy.

Multi-Axial Loading: Combines axial compression (±25 kN) with anterior-posterior shear (±5 kN).

Biorelevant Environment: 37±1°C saline bath with protein skimmer for in vivo corrosion simulation.

AI-Powered Analytics: Machine learning identifies creep-fatigue interactions in real-time.

Modular Design: Dual-station configuration enables simultaneous specimen testing.

Product Features

Electromagnetic Servo Actuator: 25 kN axial/5 kN shear capacity with programmable load ratios (R=0.1–10).

4-Point Bending Fixture: Self-aligning anvils accommodate plate lengths (30–80 mm) and curvatures.

Dynamic Load Control: Sinusoidal/square/random waveforms with 0.01 Hz resolution.

Thermal-Mechanical Chamber: -20°C to +50°C temperature control with 10–95% RH humidity.

High-Resolution Imaging: Built-in 5MP camera system for crack propagation analysis.

Safety Suite: Emergency stop, overload clutches, and laser-based specimen breakage detection.

Technical Parameters

Parameter Specification

Max.

Axial Force ±25.000 N (25 N resolution)

Max.

Shear Force ±5.000 N (5 N resolution)

Frequency Range 0.1–15 Hz (0.01 Hz increments)

Load Ratio (R) 0.1–10 (adjustable)

Bending Angle 0°–45° (0.1° resolution)

Temperature Control -20°C to +50°C (PT1000 sensors)

Humidity Control 10–95% RH (non-condensing)

Data Acquisition 100 kHz sampling rate (16-bit resolution)

Power Requirements 220V/110V ±10%, 50/60Hz, 3.000W

Dimensions (W×D×H) 2.000 × 1.200 × 2.000 mm

Weight 950 kg (including environmental chamber)

Noise Level <65 dB (A-weighted)

Standard Accessories

Lamina Fixation Fixture Kit: Self-centering plate clamps (30–80 mm length compatibility) Anatomical curvature adapters (0°–45° lordosis adjustment) Thermal-Mechanical Chamber: 15L capacity with rapid cooling/heating (15°C/min) 316L stainless steel interior with HEPA filtration LaminoplastyTest Pro Software: Automated stiffness degradation tracking and fatigue limit calculation 21 CFR Part 11-compliant audit trail with blockchain timestamping Remote monitoring via iOS/Android app Operator Kit: Calibrated torque wrench set (0.5–50 Nm) Specimen alignment gauges (ASTM F2193 compliant) Calibration Bundle: NIST-traceable force calibration weights Strain gauge verification tool Safety Kit: Laser safety curtains Acoustic enclosure with 30 dB noise reduction
