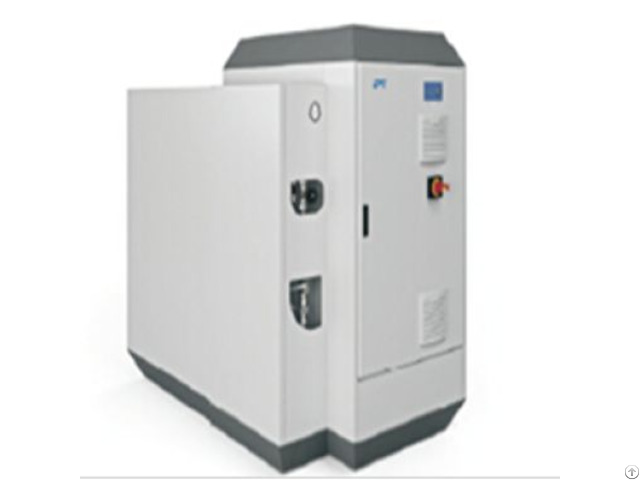

Large Diameter Blasting Test Machine Iso 1167 - China

Standard

ASTM D1599: Compliant for short-time hydraulic failure testing of thermoplastic pipes under linear pressure ramp.

ISO 1167: Configurable for long-term hydrostatic pressure resistance testing (optional module).

Product Advantages

1 - Unmatched Pressure Capacity 600 Bar Max.

Operating Pressure: Tests ultra-high-pressure industrial pipelines (oil/gas, HDPE, composite).

Linear Pressure Ramping: Adjustable rates (0.1–10 Bar/sec) for precise failure point determination.

2 - Industry-Leading Flow Rates Modular Pump System: Deliver 250 L/min @ 100 Bar or 720 L/min @ 150 Bar via interchangeable heads.

Variable Frequency Drive (VFD): Optimizes energy use during low-demand tests.

3 - Dual-Mode Versatility Burst + Hydrostatic Testing: Single machine for both short-term failure analysis and long-term creep resistance.

4 - Safety-First Design Explosion-Proof Enclosure: ATEX-certified for Zone 1 hazardous environments.

Dual Pressure Relief: Mechanical + electronic valves activate within 15ms during ruptures.

5 - Intuitive Operation 15” Touchscreen HMI: Pre-loaded ASTM D1599 test sequences with customizable ramp profiles.

Wireless Handheld Controller: Remote operation up to 30m from test chamber.

Accessories & Options

Pressure Calibration Kit: NIST-traceable reference gauge (0.05% FS accuracy).

High-Flow Pump Head: Upgrade to 1.200 L/min @ 80 Bar for fire hose testing.

Thermal Expansion Module: Water bath heater (60–95°C) for hot hydrostatic testing.

Rupture Disk Kit: Pre-scored disks for consistent failure initiation.

Safety Bundle: ATEX-certified enclosure + CO₂ fire suppression.

Data Acquisition Software: BurstVision Pro™: 3D pressure-time-strain mapping with FEA export.

CloudLink: Secure remote monitoring for global teams.

Technical Parameters

Specification Details

Pressure Range 0–600 Bar (8.700 psi)

Flow Rate (Variable) 250 L/min @ 100 Bar

Pump Configuration Modular VFD-driven triplex plunger

Temperature Range 5–60°C (ambient)

Power Supply 400V/50Hz 3-phase (CE certified)

Chamber Dimensions 2.200mm (L) × 1.200mm (W) × 1.500mm (H)

Weight 1.200 kg (net)
