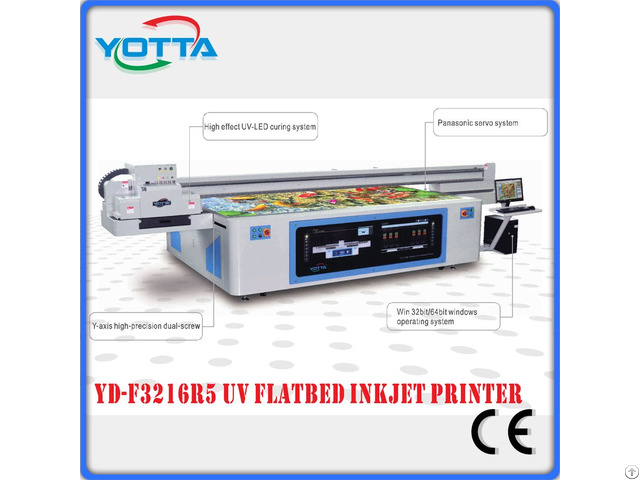

Large Format And High Speed Uv Led Flatbed Printer - China
price: 38000.00 Dollar US$
Model
YD-F3216R5 UV PRINTER Print size
3200*1600mm
Print head
Gen5(7PL)
Print resolution
600*2400dpi
Print speed
4Pass
38m2/h
6Pass
29m2/h
8Pass
22m2/h
Print mode
Unidirectional and Bidirectional
Color system
LM, LC, Y, M, C, K(Optional)
Special ink UV White color ink or UV varnish
Ink type
Environment protection UV-curable inks (NO VOC)
Number of nozzles
3-8pcs
Print height
100 mm
Materials type
Rigid or Flexible
Application
Glass, acrylic, wood, Ceramic, Metal, PVC board, Corrugated Board, Plastic etc.
RIP software
PhotoPrint, Seeget
Input format
Adobe Pistscript Level3, PDF, JPEG, TIFF, EPS, AI
Power requirement
220V/AC (±10%)50/60HZ 6KW
Printer weight
1700KG
Printer size
4950*2720*1340 (mm)
Working environment
Separate, little sunlight, ventilated workshop Temperature: 18 degree—30degree (64℉—86℉)Humidity: 30%-70% (Non-condensing) Ventilation equipment : Suggest Overhead exhaust fan, displacement 600 cfm
Company Contact:
- Posted By: Shenzhen Yueda Printing Technology Co., Ltd
- Phone: +86 13925228576
- Address: Baohe Road, Longgang District, Shenzhen , Guangdong , China
- Email:
- Website: http://www.yo-da.com
Published date: March 1, 2017
- Business Description: Shenzhen Yueda Printing Technology Co., Ltd is the leading manufacturer of uv flatbed printer, digital hybrid printer, textile printer, roll- to-roll printers in China.
On the creteria of "Integrity, Quality, Service & Win-win", we insist to provide customers best quality printing machine with reasonable price.
Welcome visiting us in Shenzhen City.
