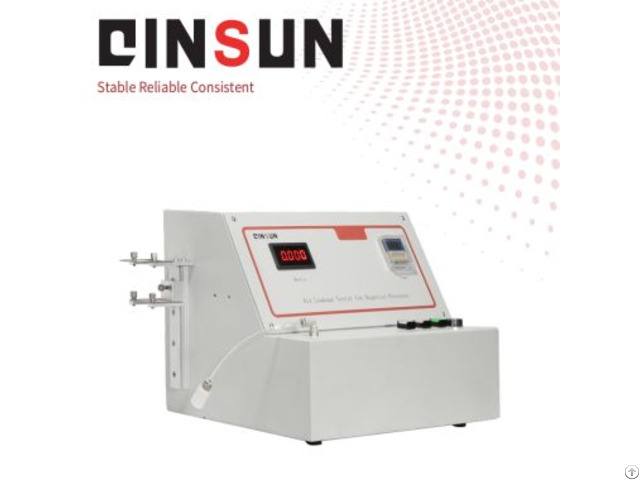

Leakage Negative Pressure Meter - China

Standard

GB 8368-2005: Infusion Equipment – Airtightness Testing Requirements ISO 8536-4: Sterile Syringes for Medical Use – Leakage Test Methods Product Advantages

Precision Negative Pressure Testing: Applies -10 to -30 kPa pressure with ±0.5 kPa accuracy.

Dual-Temperature Testing: Conducts tests at 23 ±1°C and 40 ±1°C to simulate real-world conditions.

Automated Control: PLC-driven system ensures repeatable results and reduces operator error.

Safety First: Auto-shutoff and pressure overload protection prevent device damage.

Compact Design: Portable footprint (500×600×500 mm) suits lab and production line use.

User-Friendly: Adjustable test time (1–16 seconds) and intuitive digital interface.

Product Features

Vacuum Chamber System: Distilled water flushing eliminates air bubbles for accurate leakage detection.

Adjustable Pressure Range: -10 kPa to -30 kPa (customizable via touchscreen).

Temperature Control: Tests at 23°C (room temp) and 40°C (accelerated aging conditions).

Automatic Data Logging: Records pressure decay and leakage rates in real time.

Safety Interlocks: Prevents operation if chambers are improperly sealed.

Easy Maintenance: Stainless steel components resist corrosion and simplify cleaning.

Technical Parameters

Parameter Specification

Control Mode Automatic (PLC)

Test Pressure Range -10 kPa to -30 kPa (Adjustable)

Pressure Accuracy ±0.5 kPa

Temperature Range 23 ±1°C / 40 ±1°C

Test Time 1–16 seconds (Adjustable)

Chamber Material Medical-Grade Stainless Steel

Power Supply AC 220V ±10%, 50Hz

Dimensions (L×W×H) 500 mm × 600 mm × 500 mm

Net Weight 30 kg

Display LED Touchscreen (Pressure/Time/Status)
