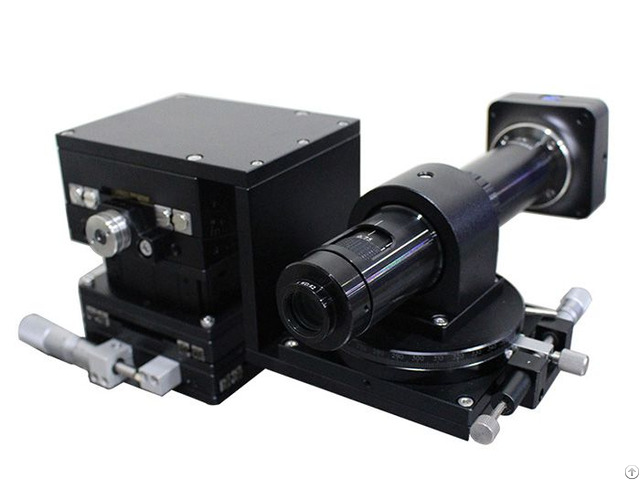

Lens Adjusting Frame - China
price: check with company for price
Specification:
TZ-II (adjusting frame) price does not include lens High Precision Manual Linear stage: PT110-50-100H/CH Model Number PT110-50-100H PT110-50-100CH PlatformSize 100mm×100mm 100mm×100mm Drive Mode Micrometer
Head in Side Drive Position Central Drive Lateral Drive Travel 50mm 50mm Scale 0.01mm 0.01mm Adjust Distance 0.002mm 0.002mm Travel Guide Crossed Roller Bearing Load capacity 40kg 40kg Straightness 5μ 5μ Pitching 25″ 25″ Yawing 15″ 15″ Parallelism 10μ 10μ Driving Parallelism 15μ 15μ Weight 1.1kg 1.1kg Material– Finish Aluminum Alloy - Black-Anodized
Company Contact:
- Posted By: Beijing PDV Instrument Co., Ltd
- Phone: 18060335777
- Address: Zhichun Road, Haidian District, beijing , 北京 , China
- Email:
- Website: https://www.pdvcn.com/
Published date: September 29, 2024
- Business Description: Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises.
Since 2005, we have been serving the scientific research institutes and universities.
We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.
) according to the needs of customers.
Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.
Our Products:
- Electric Wedge Lifting Platform Motorized Lab Jacks Table
- Pt Gd140g Precise Electric Translating Platform
- Z Axis Single Shear Fast Lifting Platform Pt Bz31 Bz50 Bz50a Bz70
- Electric 3d Station Xyz Mini Travel 20mm
- Pt 01pg Precision Optical Table Vibration Isolation Platform Cellular
