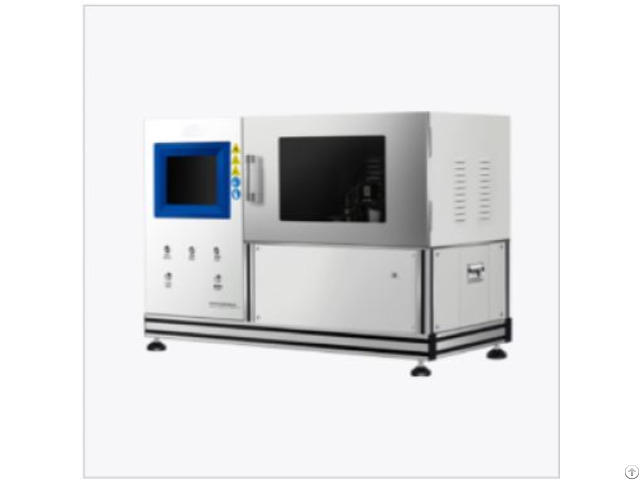

Liquid Sustained Combustion Tester - China

Product Introduction

This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 32.5.2 Test L.

2: Sustained Combustion Test and GB/T 21622 - 2008 Test Method for Sustained Combustion of Flammable Liquids in Dangerous Goods.

Standard

GB/T 21622-2008 Product Features

1 - It adopts an embedded processor and the Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It integrates three working modes, namely the "standard mode", the "custom mode" and the "cleaning mode", for users to choose freely.

4 - It uses environmental air pressure and temperature compensation technology to precisely control the heating temperature with high temperature - control accuracy.

5 - It has an automatic intelligent sample - feeding module and a maintenance - free automatic cleaning function.

6 - It uses highly sensitive photoelectric detection technology to automatically detect flame combustion phenomena, ensuring detection accuracy.

7 - It has automatic ignition, positioning and precise automatic timing functions.

8 - The instrument has a fault - detection function and audible and visual alarm functions.

9 - The test process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

Technical parameters

Working Environment (5 to 40)°C, <85%RH Standard Test Temperature 60.5°C/75°C Temperature Control Accuracy ±0.5°C Ambient Atmospheric Pressure Measurement Range (60 to 110)kPa Ambient Atmospheric Pressure Measurement Accuracy ±0.5kPa Heating Timing 60s, 30s Sample Volume (1 to 3)mL Sample Accuracy ±0.05mL Timing Range (0 to 999)s Timing Display Resolution 0.1s Ignition Mode Spark Plug Sample Bottle Capacity 20mL
