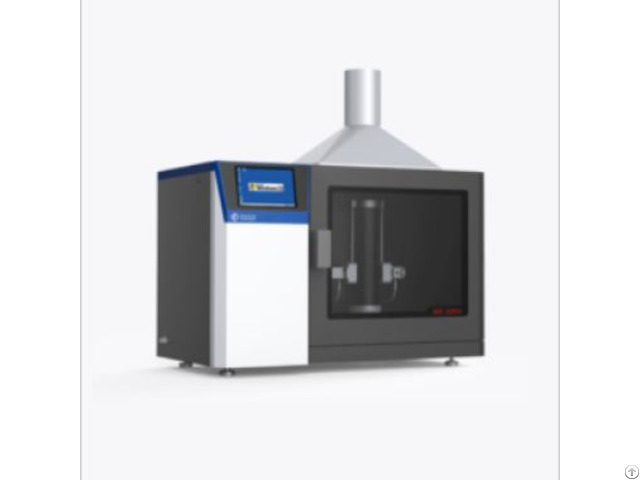

Lowest Ignition Energy Mie Dust Cloud Analyzer - China

Description：

Dust Cloud Minimum Ignition Energy Tester disperses a certain mass of dust specimen to be tested into the Hartmann tube device through a certain pressure of compressed air to form a cloud of dust, uses a specified spark energy to ignite the dust cloud, and obtains the minimum ignition energy of the dust specimen to be tested through a series of tests.

It reflects the sensitivity of dust ignition from the energy point of view, and is suitable for evaluating the potential explosive hazard of dust clouds.

Reference Standards：

ASTM E2019 IEC 61241 - 2 - 3 ISO/IEC 80079 - 20 - 2 GB/T 16428 Product Features：

1 - It has built - in commonly used international test standards, allowing for testing according to standard parameters or custom - setting.

2 - During testing, only the ignition energy value needs to be input, and the instrument automatically selects the optimal combination of capacitance and voltage.

3 - The high - voltage charging module automatically disconnects, improving operational safety.

4 - The powder dispersion device is reasonably designed to ensure uniform dispersion of powder samples.

5 - The instrument is flexible to use, with easy adjustment of the electrode spacing, spraying pressure, and delay time.

6 - It automatically records the number of times the electrode ignites and reminds users to replace the electrodes in a timely manner to prevent electrode wear from affecting the test results.

7 - The Hartmann tube is equipped with a lifting and rotating mechanism, which is convenient for cleaning and saves experimental time.

8 - Remote ignition ensures the safety of experimenters.

Technical parameters:

Operating Environment (5～45)℃, <85%RH General Purpose Mode 1 mJ, 3 mJ, 10 mJ Spark Energy 30 mJ, 100 mJ, 300 mJ, 1000 mJ, 3000mJ Custom Mode (1～3000)mJ, settable, step 1mJ Spark Energy (0～15)kV Charging Voltage No load, 1mH inductive load Discharge Load 1.2L Hartmann Tube Experiment Vessel Diameter 2mm Tungsten Electrode Electrodes (2～10)mm, Adjustable Electrode Spacing High Voltage relay triggered, .

Moving electrode trigger Electrode Trigger Mode 20ms～180ms, adjustable Ignition Delay Time 0.4MPa～0.7MPa, adjustable Powder Spray Pressure USB*2 Interfaces 90～260VAC/47～63Hz Power 300W
