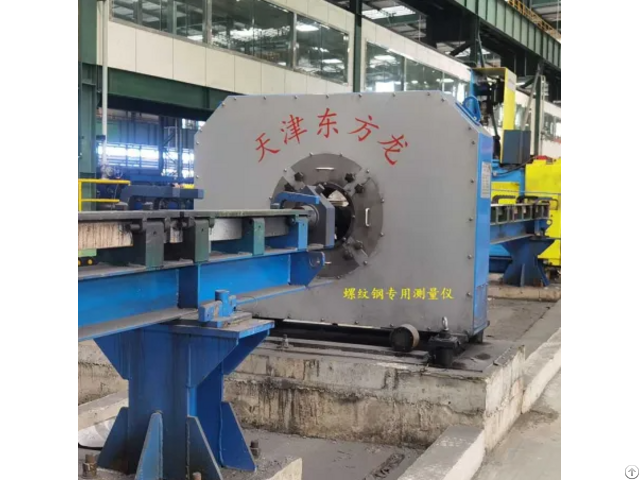

Maintenance Free Real Time Rebar Special Measuring Instrument Gdc L350 Jx - China

Purpose: DFL special rebar measuring instrument, which is different from the rebar measuring instruments currently on the market at home and abroad.

It can truly and accurately conduct real-time external inspection of rolling stock according to different standard site conditions of different rolls in each steel plant.

Online monitoring of contour dimensions provides accurate and timely feedback on changes in meter load tolerance caused by changes in contour dimensions, allowing timely and accurate judgments to adjust the rolling mill or replace rolls, thereby shortening the time to adjust the rolling mill, avoiding manual jamming errors, saving manpower and time, and reducing costs.

Synergist

Detection type: rebar

Measurement principle: laser scanning method;

Measurement method: rotary measurement;

Measurement frequency: 1600;

Rotation speed: ≥30 rpm;

Installation method: fixed or mobile

The entire set of equipment comes standard: control cabinet, measuring vehicle, electrical control box, LED display, cooling and dust removal system and supporting facilities.

Adaptable rolling speed: ≤120m/s

Adaptable rolling temperature: ≤1200℃

Measuring range: 5-50mm

Allowable deviation: ≤±0.04 (inner diameter, transverse rib, longitudinal rib)

Installation location: finished product location after finishing mill Eastloong Measurement & Control Technology Co., Ltd. is a professional company to provide the overall measurement scheme for the long steel rolling production line.

Company Contact:

• Posted By: TIANJIN EASTDRAGON PHOTOELECTRICITY CO.,LTD

• Phone: 022 23783384

• Address: K1-4, No.6 HaiTai development 6th road, green industry base, Huayuan industrial zone, Tianjin , Tianjin , China

• Email:

• Website: https://www.measurementon-line.com/

• Business Description: Eastloong Measurement & Control Technology Co.,Ltd. is a professional company to provide the overall measurement scheme for the long steel rolling production line.

  It was founded in 2004 and is located in the beautiful Tianjin High tech Industrial Zone, a green industry base called the "National Software Industrial Park".

  It is composed of optical measurement experts and professional technical talents in optics, machinery, electronics, software, computer, and other fields.

  It is a specialized company that integrates research and development, production, sales, installation, and after-sales service.

  The first domestic photoelectric camera diameter gauge (in 2000), the first laser scanning swing diameter gauge (in 2018), the first rotary diameter gauge (in 2021), the first surface defect detector (in 2022) , and the first rebar measurement instrument(in 2023) were all born in Eastloong.

  The company takes research and development as the leader and quality as the guarantee, with over one hundred patents and software copyrights.

  For many years, Eastloong has been innovating and developing in the field of steel rolling measurement with a focused spirit and enterprising attitude, and has been highly praised by customers.

  Now more than 600 gauges have been installed the steel rolling line in such as Baosteel, Ansteel, Hebei steel, Jianlong group, Shougang steel, Tata steel, JFE, Valin steel ,Shandong steel,etc.

  in many countries.

  Eastloong will still focus on steel rolling measurement ,provide the best service for global steel enterprises.
