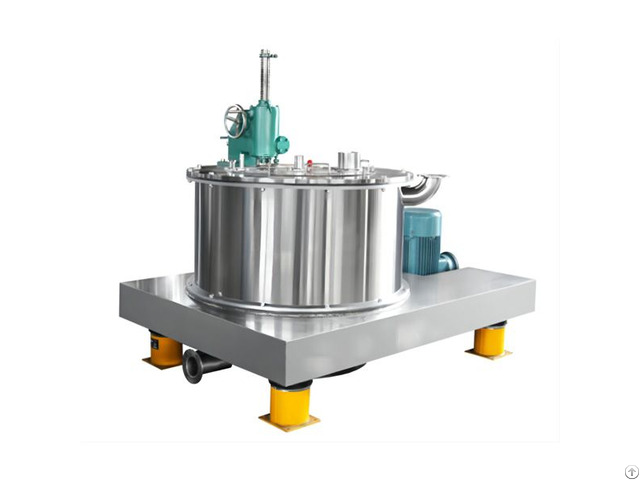

Manual Scraper Bottom Discharge Centrifuge Machine - China

The motor drives the bowl to turn at a medium speed.

The feeding valve is opened to feed the materials from the feeding pipe to the bowl.

The materials are evenly spread to the bowl walls.

The feeding will stop after the intended volume is reached.

The bowl will turn at a high speed.

Under the action of centrifugal force, the liquids are discharged outside the machine after passing through the filter cloth and bowl filtration pores.

The solids are retained in the bowl.

After the rotation speed of the bowl is reduced to a low one, the scraper will turn to make reciprocating movements and scrape the solids off the bowl walls.

Then the solids will be discharged from the bottom of the centrifuge.

Model RYPG-800 RYPG-1000 RYPG-1250 RYPG-1500

Drum diameter(mm) 800 1000 1250 1500

Drum volume(L) 115 175 360 460

Maximum loading limit (kg) 150 250 500 550
