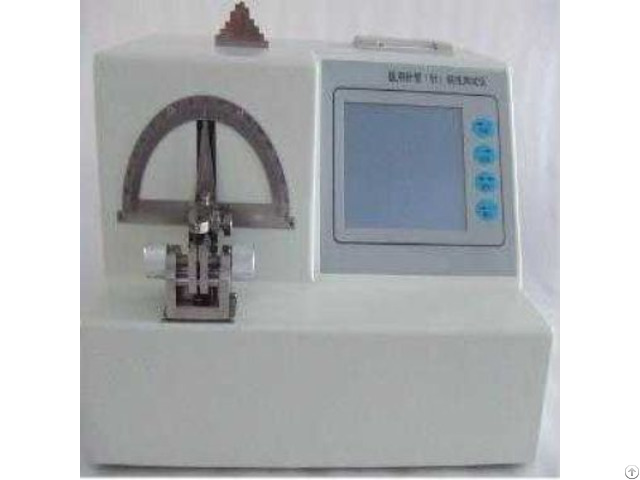

Medical Needle Toughness Tester - China

Medical needle injection needle toughness tester using 5.7 inches (120 × 90) LCD menu display, touch operation: 3 tubes walls( normal wall, thin wall, ultra thin wall) are optional; RX9626-D medical needle Toughness tester is designed and manufactured according to GB18457 " stainless steel needlefor medical equipment manufacturing, " GB15811 "sterile disposable injection needle" standards standards

GB15811 GB18457 ISO 9626 Test procedure

1 Fix one end of the needle tube firmly to the jig and adjust the specified span load of test needle according to table 3, and select bending angle as following, normal wall 25 °, thin wall 20 ° and ultra thin wall 15 °.

2 - Apply a sufficiently large force at the specified span position, exert force bi-directionally 20 times at a frequency of 0.5 Hz to observe the breakage of the needle cannula.

Principle

One end of the needle tube is fixed and a force is applied to the needle tube from the fixed point to the prescribed span, bent in one direction by a specified angle and then into opposite direction, repeat at stipulated number of times.

Technical parameters

Syringe nominal specifications: 0.2 ~ 3.4mm; Test frequency: 0.5Hz; Rocker arm bending angle: 15 °, 20 °, 25 ° 3 kinds of positions, the switch set bending angle, display in high-brightness 4 digit LED; Bending distance: 6 ~ 95mm, accuracy: ± 0.1mm (10 kinds of specifications); The number of experiments: bi-directional force 20 times.

Net weight: 10kg Overall dimensions: 300 × 240 × 240 (mm) Free upgrade according to national standards perpetually Part list: 1 - Host 1 set 2 - Printing paper 1 roll 3 - Fixture 1set 4 - Weight 1 set 5 - Operating Instruction
