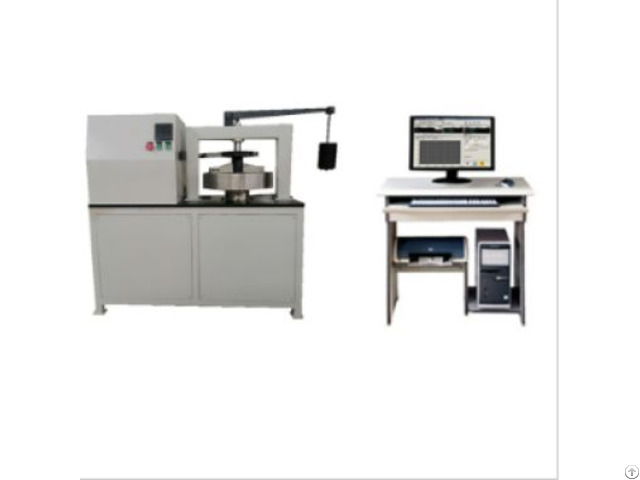

Micro Controll Constant Speed Friction Plate Tester - China

Standards

GB5763-1998 brake linings for automobiles; GB/T5764-1998 brake linings for automobiles; GB/T5764-1998 brake linings for automobiles.

GB/T5764-1998 clutch facings for automobiles; GB/T11834-2000 asbestos friction pads for industrial machinery; SY/T5023-1994 brake blocks for oil drilling rigs.

Main uses

microcomputer control fixed-speed friction tester is mainly used to measure the friction coefficient and wear rate of automobile brake linings (brake pads), automobile clutch facings, oil drilling rig brake blocks and a variety of industrial machinery friction pads, motorcycle brake pads and other non-metallic friction materials.

Performance Characteristics

Strictly in accordance with the provisions of the GB5763-98 standard, in keeping with the basic principles and structure of Japan's HP-S-type prototype machine based on the combination of modern technology to improve the design and become.

1 electromechanical integration of the whole structure, the user wiring available.

2 force measuring organization force flow in the same plane, completely solve the mechanical vibration problem.

3 gravity code calibration device, so that the measurement is more accurate.

4 stainless steel heating and cooling cover, wet parts of all nickel-plated rust-proof treatment, stainless steel nickel wire heater; 5 pre-furnace assay electric furnace precision casting friction disk.

9 increased cooling fan to prevent water vapor sprayed onto the surface of the friction disk and affect the measurement data.

10 adopted a new way of measuring force, canceled the vibration damping device, improve the measurement accuracy.

11 host and console compact structure, beautiful appearance, can realize the automatic circulation of cold water and drainage.

Main indicators

1 - Control system: independent research and development by Jinan, through the use of a laptop plus the lower computer control software, closed-loop control experiments on the real-time control of the test process, the collection and analysis of test data, the automatic processing of test results, drawing curve analysis reports.

2 - Temperature: temperature measurement and control range 0 ~ 260 ℃ (up to 350 ℃), measurement accuracy 1 ℃, measurement error 5 ℃.

3 - Friction: Measurement range 0 ~ 2000N, measurement accuracy 0.2N, measurement error 10.0N.

4 - Mo disc rotation: 480 ~ 500r/min, measurement accuracy 1 turn, measurement error 1 turn.

5 - Power: host 7.5kw, heating pipe 4.5kw, fan 120w kw, fan 120w, total power: 12.12kw.

6 - friction disk: material for gray cast iron HT-250 - brinell hardness 180~220HB, pearlite organization.

7 - specimen: 8 - friction radius: R=150mm 9 - positive pressure: 0.49Mpa - 0.98Mpa 10 - loading weights: 1.25kg1 piece 2.5kg3 pieces 11 - external shape Dimensions: 12 - Control cabinet: 800×600×100013 - Weight: about 1000kg.
