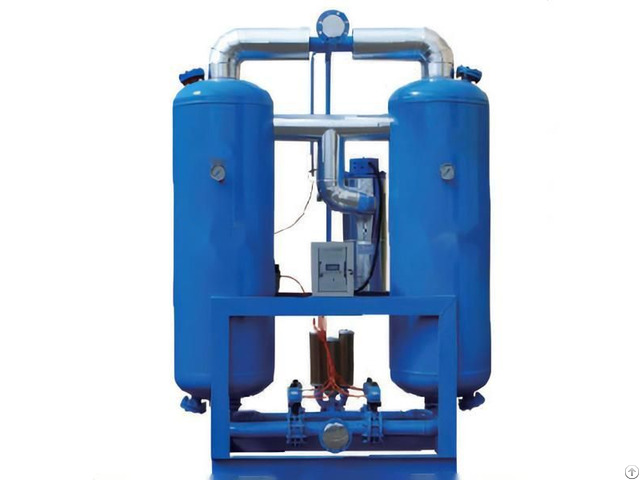

Micro Thermal Regenerative Adsorption Drying Machine - China

It has the advantages of heat regeneration and no heat regeneration, using the form of micro heating, so as to reduce the regeneration of gas consumption, to achieve energy saving.

It avoids the disadvantages of short switching time of heat-free regenerative dryer and large loss of regenerative air, and also avoids the disadvantages of large loss of electromechanical energy of heat-free regenerative air drying.

The dryer has reasonable switching time and small relife consumption.

It is the most economical energy-saving adsorption dryer in the chemical industry.

It is widely used in metallurgy, electric power, electronics, food, chemical industry, petroleum, medicine, light textile, tobacco, instrument, automatic control and other industries.

Working conditions and technical indicators：

Design pressure dew point: Standard type-20℃ (with-40℃, -70℃ products available) Intake temperature: 20~45℃ working pressure: 0.6~1.0Mpa


Drying agent: standard activated alumina, low dew point product activated alumina and 5A molecular sieve combination working mode: alternating continuous working control mode of two adsorption tubes: microcomputer program control of intake oil content: 0.1PPM pressure loss: 3% regeneration gas volume of import pressure: 6~8% regeneration mode: Micro heat regeneration.
