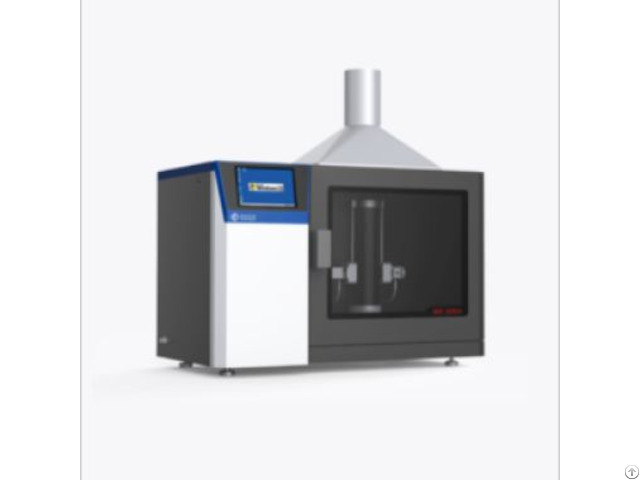

Minimum Ignition Energy Mie Dust Cloud Tester - China

Reference Standards： ASTM E2019 IEC 61241 - 2 - 3 ISO/IEC 80079 - 20 - 2 GB/T 16428 Product Features： 1 - It has built - in commonly used international test standards, allowing for testing according to standard parameters or custom - setting.

2 - During testing, only the ignition energy value needs to be input, and the instrument automatically selects the optimal combination of capacitance and voltage.

3 - The high - voltage charging module automatically disconnects, improving operational safety.

4 - The powder dispersion device is reasonably designed to ensure uniform dispersion of powder samples.

5 - The instrument is flexible to use, with easy adjustment of the electrode spacing, spraying pressure, and delay time.

6 - It automatically records the number of times the electrode ignites and reminds users to replace the electrodes in a timely manner to prevent electrode wear from affecting the test results.

7 - The Hartmann tube is equipped with a lifting and rotating mechanism, which is convenient for cleaning and saves experimental time.

8 - Remote ignition ensures the safety of experimenters.

9 - User - level management enables the management and control of accounts at different levels.

10 - The USB interface is plug - and - play, facilitating data management.

11 - With professional industrial design, it is simple and elegant.

12 - It has a user - friendly human - machine interaction, making it easy to learn, understand, and operate.

13 - It is equipped with a 7 - inch color liquid - crystal touch screen that dynamically displays the experimental progress.

Technical parameters: Operating Environment (5～45)℃, <85%RH General Purpose Mode 1 mJ, 3 mJ, 10 mJ Spark Energy 30 mJ, 100 mJ, 300 mJ, 1000 mJ, 3000mJ Custom Mode (1～3000)mJ, settable, step 1mJ Spark Energy (0～15)kV Charging Voltage No load, 1mH inductive load Discharge Load 1.2L Hartmann Tube Experiment Vessel Diameter 2mm Tungsten Electrode Electrodes (2～10)mm, Adjustable Electrode Spacing High Voltage relay triggered, .

Moving electrode trigger Electrode Trigger Mode 20ms～180ms, adjustable Ignition Delay Time 0.4MPa～0.7MPa, adjustable Powder Spray Pressure USB*2 Interfaces 90～260VAC/47～63Hz Power 300W
