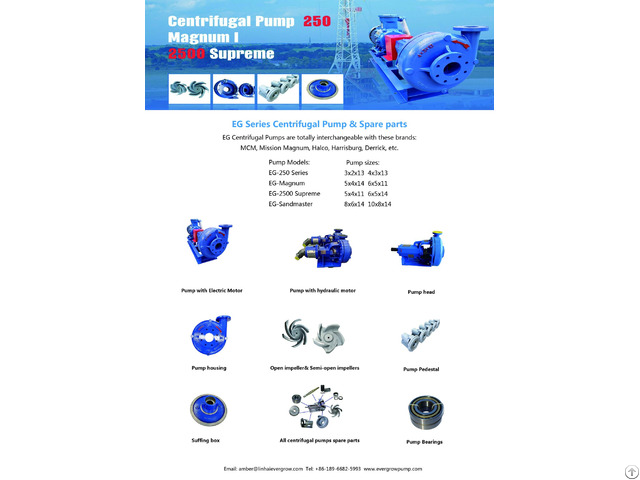

Our EG-250 Centrifugal pump could replace the pumps from below brands.

Welcome to contact us for inquiries.

250 Series Centrifugal Pump Diagram Item No.

Description Qty Req MCM Mission Halco Harrisburg 1 250 Pedestal 1 P25PED 20618-12-1 H20618-12-1 1-250-PED G0006001

2 250 Shaft 1 P25SHFT 20612-02-33 H20612-02-33 7-250-416SS G0006002

3 250 Outboard Bearing Housing 1 P25OBBH 20624-01-01 H20624-01-01 4C-250-BH G0006003

4 250 Packing Gland 1 P25PG 20622A H20622A 9-250-GPA G0006004

5 250 Inboard Bearing 1 P25IBBRG 20615-1 H20615-1 4B-250-BI G0006005

6 250 Slinger Ring Water 1 P25SRW 22210-1A H22210-1A 23-250-SRW-U G0006006

7 250 Inboard Bearing Cover 1 P25IBBC 20626A H20626A 2B-250-BC G0006007

8 250 Outboard Bearing 2 P25OBBRG 20616-1 H20616-1 4A-250-BO G0006008

9 250 Outboard Bearing Cover 1 P25OBBC 20617A H20617A 2A-250-BC G0006009

10 250 Graphite Packing 1 P25PMSG 8264-24-OBA H8264-24-OBA 8A-250-PMSG G0006010 250 King Packing 1 P25PMSK 8474-24-1A H8474-24-1A 8C-250-PMSK G0006011 250 Teflon Packing 1 P25PMST 8264-24-7A H8264-24-7A 8D-250-PMST G0006012 250 Mechanical Seal 1 P25MS/TT 22451 H22451 34A-250-MSI G0006013

11 250 Gland Bolt Assembly 2 P25GABA 3701A H3701A 10-250-GABA G0006014

12 250 Shaft Sleeve, Ceramic 1 P25SHSLVC 20613-21G-7A H20613-21G-7A 7A-250-SSC G0006015

13 250 Stuffing Box F/Packing 1 P25SB/PK 20614-01-30 H20614-01-30 11-250-SBPS G0006016 250 Stuffing Box F/Mech.

Seal 1 P25SB/MS 22223-01-30A H22223-01-30A 11C-250-SBMSS G0006017

14 250-2x3x13 Impeller 1 P25D233MRXXX 19204-XX-30 H19204-XX-30 1225231XXX G0006184 250-3x4x13 Impeller 1 P25D343MRXXX 19206-XX-30 H19206-XX-30 1225341XXX G0006026 250-4x5x14 Impeller 1 P25D454MRXXX 19224-XX-30 H19224-XX-30 1225451XXX G0006204 250-5x6x11 Impeller 1 P25D561MRXXX 19121-XX-30 H19121-XX-30 1225561XXX G0006168 250-5x6x14 Impeller 1 P25D564MRXXX 19121-XX-30 H19121-XX-30 1225564XXX G0006214 250-6x8x11 Impeller 1 P25D681MRXXX 19116-XX-30 H19116-XX-30 1225681XXX G0006218 250-6x8x14 Impeller 1 P25D684MRXXX 19116-XX-30 H19121-XX-30 1225681XXX G0006224

15 250-2x3x13 Housing Assembly 1 P25D233H 19203-01-30A H19203-01-30A 142523HAS G0006025 250-3x4x13 Housing Assembly 1 P25D343H 19205-01-30A H19205-01-30A 142534HAS G0006026 250-4x5x14 Housing Assembly 1 P25D454H 19222-01-30A H19222-01-30A N/A G0006027 250-5x6x11 Housing Assembly 1 P25D561H 19122-01-30A H19122-01-30A 1425561HAS-11 G0006028 250-5x6x14 Housing Assembly 1 P25D564H 19123-01-30A H19123-01-30A 1425561HAS-14 G0006029 250-6x8x11 Housing Assembly 1 P25D681H 19763-01-30A H19763-01-30A N/A G0006030 250-6x8x14 Housing Assembly 1 P25D684H 19117-01-30A H19117-01-30A 142568HAS G0006031

15b 250 Replaceable Wear Pad 1 P25DCWP Casing wear plate 6х5х14 1 P25CWP564 H2504-01-30A H2504-01-30A G0006050 Casing wear plate 8х6х14 1 P25CWP684 H2506-01-30A H2506-01-30A G0006052

16 250 Housing Stud W/Nut 12 P25HSN 3862-76/3932-61 H3862-76/3932-61 15-250-HSN G0006032

17A 250 Fluid End Gasket Kit P25FEGK 10399-46-1A H10399-46-1A 31-250-FEGK G0006033

17 250 Housing Gasket 1 P25HG 10399-46-1 H10399-46-1 13C-250-HGA G0006034

18 250 Impeller Seal-O ring 1 P25IMS 19110-72 H19110-72 12B250-ISOR G0006035

19 250 Shaft Sleeve Seal-Oring 1 P25SSS 7496-236 H7496-236 7B-250-SSOR G0006036

20A 250 Oil Seal kit P25OSK 20619A H20619A 33-250-GSK G0006037

20 250 Inboard Bearing Oil Seal 1 P25IBBOS 20619-01 H20619-01 5B-250-OGSI G0006038

21 250 Inboard Exclusion Seal 1 P25IBBES 20620-01 H20620-01 5C-250-SEXI G0006039

22 250 Outboard Bearing Oil Seal 1 P25OBBOS 20619-02 H20619-02 5A-250-OGSO G0006040

23A 250 Power End Gasket Kit P25PEGK 20625A H20625A 32-250-PEGK G0006041

23 250 Inboard Bearing Cover Gasket 1 P25IBBCG 20625 H20625 3A-250-BCG G0006042

24 250 Outbd Bearing Hsg.

Seal-Oring 1 P250BBHS 7496-253 H7496-253 4D-250-BHOR G0006043

25 250 Outbd Brg.

Cover Seal-Oring 1 P250BBCS 7496-26 H7496-26 3B-250-BCOR G0006044

26 250 Bearing Lock Nut Kit 1 P25BLNK 6123-4A H6123-4A 4E-250-BBLNA G0006045
