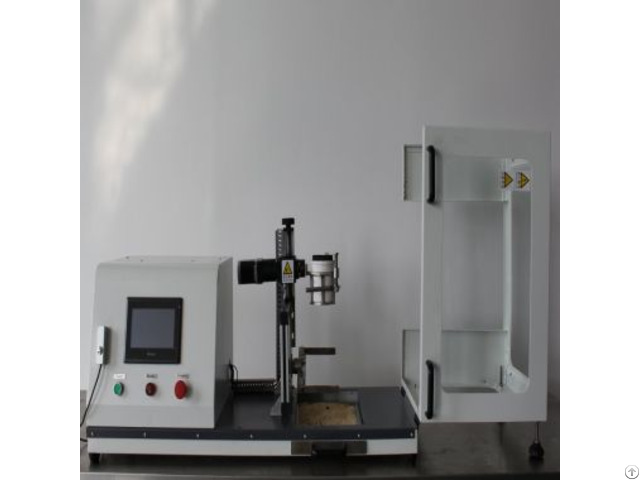

Molten Metal Penetration Resistance Meter - China

Standard

ISO 9185 (Protective Clothing - Assessment of Resistance to Molten Metal Splash)

ASTM F955 (Standard Test Method for Evaluating Heat Transfer Through Materials for Protective Clothing Upon Contact With Molten Substances)

EN ISO 11612 (Protective Clothing - Performance Requirements for Clothing to Protect Against Heat and Flame)

Product Advantages

Precision Molten Metal Delivery

Programmable crucible system delivers molten metal (iron, aluminum, zinc) with ±2°C temperature accuracy, simulating industrial splash scenarios.

Automated Safety Protocols

Integrated shielding, emergency coolant system, and laser-guided drop placement minimize operator risk during testing.

High-Speed Imaging

1, 000 FPS camera captures penetration dynamics in real time, providing visual evidence for compliance reporting.

User-Centric Operation

10.1-inch touchscreen with multilingual interface (English, German, Chinese, Korean) and AI-powered test result analysis.

Low Cost of Ownership

Energy-efficient design reduces power consumption by 25%, with recyclable crucible liners minimizing waste.

Technical Parameters

Parameter Specification

Temperature Range Up to 1, 600°C (±2°C accuracy)

Metal Compatibility Iron, Aluminum, Zinc, Copper

Drop Height Range 0.5–2.0m (adjustable)

Drop Volume Control 1–50g (±0.1g accuracy)

Data Acquisition Rate 10, 000 Hz (thermal/pressure sensors)

Power Supply 380V/220V AC, 50/60Hz, 4.5kW

Dimensions (L×W×H) 1.5×1.2×2.0 m

Weight 300 kg

Operating Environment 5–40°C, ≤75% RH (non-condensing)
