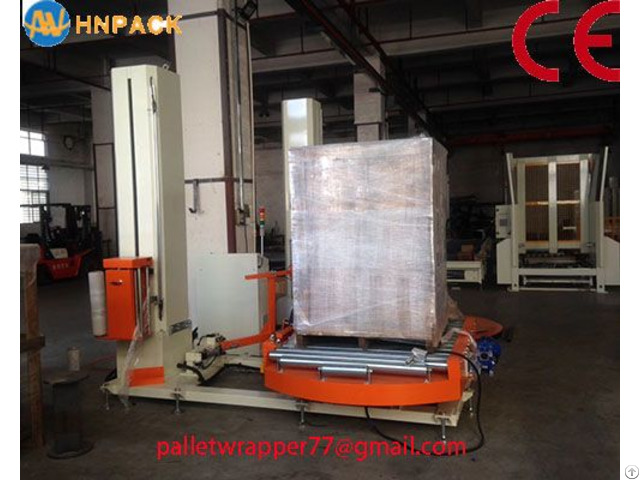

Ms303 Online Fully Automatic Pallet Stretch Film Wrapper Machine - China

MS303is a Fully Automatic Stretch Wrapper.

It’s an ideal wrapper to integrate into a palletizing line to achieve automatic pallet packaging.

The wrapper automatically pick up a loaded pallet from in-feed conveyor, wrap it and conveyor the load to out-feed conveyor.

These machines are designed for low to medium-duty wrapping applications.

The wrapping machines are available in different configurations, with the possibility of 90° pallet in-feed and out-feed conveyors.

Item Parameters

Turntable Diameter 2000mm, accept customized design

Pallet size L(800-1200)mm, W(800-1200)mm, accept customized design

Wrapping Height 1800mm, accept customized design

Loading Weight 2000kg,, accept customized design

Packing Speed 20-45 pallets per hour

Turntable Speed 0-15rpm, speed varibale, turntable soft start&soft stop

Turntable Height 500±50mm

Carriage Speed 0-3m/min

Control System PLC program logic control

Air Press 0.4~0.7 Mpa

Cut Method heater

Control System PLC program logic control+Touch Screen

Working Mode Fully Auto unmanual

Power 3PH, 380VAC(optional), 50/60Hz, 3kw, 20A

Dimensions 2960x2625x3000mm

Machine Weight 1150kg 1 - MS303H Fully auto turntable stretch wrapper+MT107 top sheet dispenser are conveyorized machines for automated unmanned packing lines; 2 - Controlled by same control system, pallets can be automatically wrapped and covered on the top simultaneously to be protected against dust&moisture, and achieve perfect exterior looking; 3 - widely used to enhance work efficiency, reduce labor cost and raise packing grades, in industries such as chemicals, electric&electronic, food&beverage, paper making, etc; 4 - MT107 toP sheet dispenser could be ordered independently to go with present wrapper.

5 - Accept wrapping machine custom design, such as color, configuration, performance, appearance, material, wrapping height, loading weight, control system, pallet size and so on.

Company Contact:

• Posted By: Shenzhen Henno Packaging Technology Co., Ltd

• Phone: +8618924580301

• Address: Hongjian Market South，Houjie Town,D, dongguan , guangdong , China

• Email:

• Website: https://www.hennopack.com

• Business Description: Hennopack is the professional packing equipment manufacturer and supplier in China.

  Located in the south part of China, we have we have the very convenient condition to start our packer system business.

  Based on the 4 big factories located in SHENZHEN and DONGGUAN, we can make 3 different big kinds of Packing systems: different type of case packer, Robot pick and drop system, Case erector, Carton sealer, box former pallet stretch wrapper and shrink wrapper.

  The hennopack team has many skilled technicians to help you solve all kinds of packing system problems.

  we provide PLC programming, HIMI programing, customized mechanic design etc.

  Also, have our own spare parts group.

  They are ready to help you get all kinds of packing machine spare parts in China.

  And we insure that all the parts we use and sell are 100% original.
