Multichannel Pump Head - China

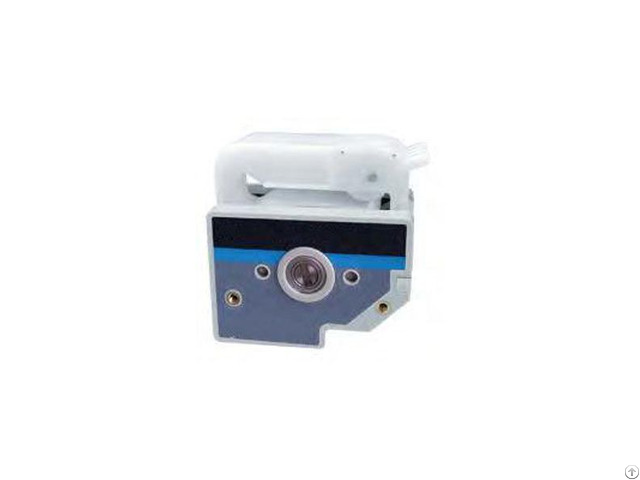

Introduction： 1 - Lead Fluid DG series pump head designed for small flow and multi-channel fluid transmission, it can realize simultaneous transmission of more than 1-48 pipelines with compact structure and convenient use.

2 - Exquisite structure design, even compared with traditional multi-roller pump head, can still provide very low transmission pulsation.

3 - Reasonable mechanical structure and high precision processing technology ensure the consistency of flow between channels.

4 - The card-type structure can be loaded and unloaded independently, which is easy to replace and fix the pump tube.

5 - There are two kinds of card pressure tube device ratchet adjusting device and adaptive spring device, adjustment card with shift display, pressure tube clearance can be based on manual adjustment according to the size of tube, to adapt to different wall thickness of tube and transmission pressure.

Self-adaptive design of spring card, pressure tube clearance will be adjusted automatically according to the thickness of tube.

6 - High strength stainless steel is used as the material of pump head roller, and POM and PVDF high function plastics are selected as the card material to meet the requirements of different working conditions.

7 - Can suitable for tube of wall thickness 0.8~1mm, ID 0.13~3.17mm Silicone, Pharmed, PVC, Viton and other materials and specifications, single channel flow range is 0.0001~49ml/min.

8 - Number of pump head roller 6 or 10 optional, 6 rollers pump head with wide flow range, long tube lifetime, 10 rollers pump head with less transmission pulsation and tube wear higher.

9 - Can match speed below 100rpm stepper motor, servo motor, AC gear motor, DC gear motor and other motors.
