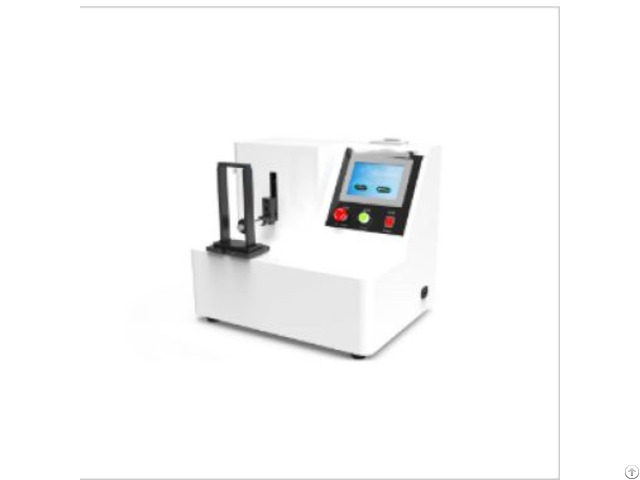

Needle Sharpness Intensity Chamber - China

The Sharpness and Strength Tester for Suture Needles is a device specifically designed to detect the sharpness and strength of medical suture needles.

The following is a detailed introduction to its compliance standards, main uses, and technical parameters: Compliance Standards

The detection standards of the Sharpness and Strength Tester for Suture Needles comply with the relevant regulations ofYY/T 0043 - 2016 *Medical Suture Needles*.

This standard puts forward clear requirements for the edge sharpness of suture needles.

That is, at a specific cutting speed, the cutting force of the edge shall not exceed a certain threshold.

The tester is designed and manufactured based on this standard, aiming to provide a reliable quality - control tool for the medical industry.

Technical Parameters

Operation Interface: Offers a simplified Chinese/English selection and supports Chinese - English switching.

Display Screen: A 7 - inch high - resolution touch screen is adopted.

Control System: PLC control system, which dynamically displays the loading force value.

Sensor: High - precision force value sensor with hardware and software protection functions.

Testing Items: Include strength, puncture force, etc.

Nominal Specification: The customizable range is 0.2 - 1.8mm.

Die Hole Diameter: Φ5mm.

Loading Rate: The speed is ≤10mm/s when loading to the set value.

Hardness of Steel Block: HRC≥60 - Printing Method: A miniature dot - matrix printer that can print test data and puncture force values.
