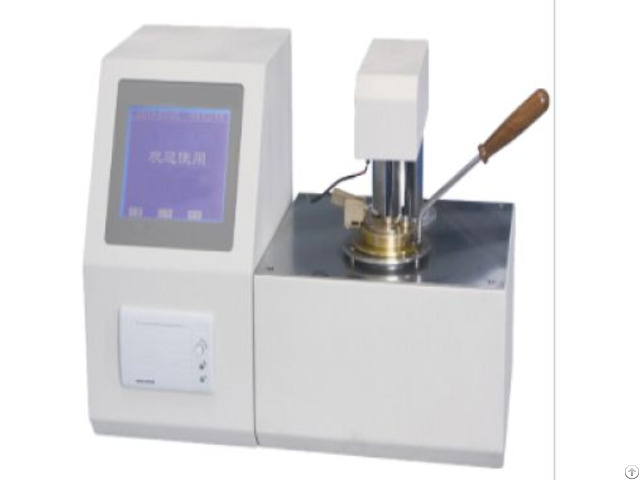

Open Cup Flash Point Chamber - China

Product Introduction:

The instrument can automatically test the flash point and ignition point of petroleum products (the ignition point of oil exceeding 80 ° C, except crude oil and petroleum fuel), and can be compared with the test results of manual instruments, very simple and convenient.

Meets the ISO 2592 standard.

Its programmable logic controller and touch screen (5.5 ") help automate testing, and managing test results is easy.

Product Advantages:

Automates the testing process for both flash point and ignition point, reducing operator intervention and potential for error.

Provides highly repeatable and reproducible test results, crucial for reliable product characterization.

Designed to comply with the ISO 2592 standard (Cleveland Open Cup Method).

Features an intuitive 5.5-inch color touch screen and programmable logic controller (PLC) for easy operation and test management.

Simplifies data processing and result management, enhancing laboratory efficiency.

Offers a convenient and efficient alternative to traditional manual testing methods.

Equipped with safety features necessary for handling flammable petroleum products.

Product Features: Automatic Test Procedure: Conducts the heating, test flame application, flash detection, and ignition point determination automatically.

Programmable Logic Controller (PLC): Enables precise control over the test parameters and sequences.

Touch Screen Interface (5.5"): Provides a user-friendly interface for setting up tests, monitoring progress, and viewing results.

Data Processing and Management: Capable of processing test data and facilitating easy management of results.

Micro Printer: For direct printing of test results for record-keeping.

Integrated Heating System: Precisely controls the sample temperature rise rate.

Automatic Ignition System: Applies the test flame at specified intervals.

Flash/Ignition Detection System: Reliably detects the flash and sustained ignition.

Standard：

ASTM D92; IP 36 - 403; ISO 2592; AFNOR T60-118; EN 22592; DIN 51376 Product Specifications:

Dimensions : 550(W) x400(D)x320(H)mm Table size : 1.000(W)x600(D)x800(H)mm Power supply : AC 220V 50/60Hz, 15A Weight : 30kg Instruction manual: available Exhaust: minimum 50L/s
