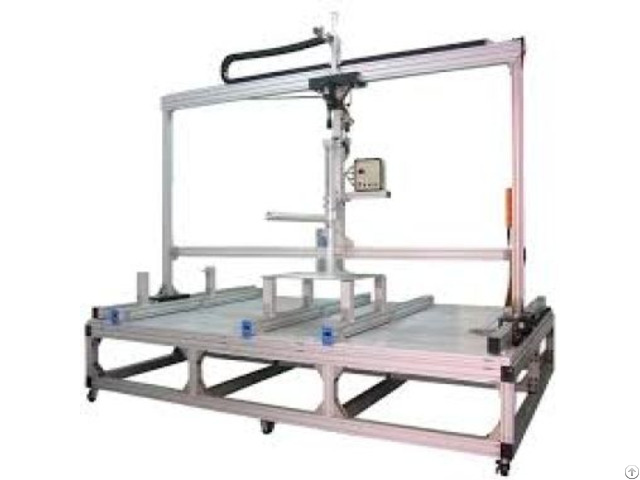

Photovoltaic Hail Impact Testing Equipment - China

Standard Compliance

IEC 61215: Mechanical load testing for terrestrial photovoltaic modules.

UL 61730: Safety standards for photovoltaic modules under extreme weather conditions.

ASTM E1886: Impact resistance testing for building envelopes (adapted for PV applications).

IEC TS 63057: Hail impact simulation protocols for concentrated solar power systems.

Product Advantages

Precision Engineering: High-speed pneumatic system delivers repeatable impact energies (±2% accuracy).

Adjustable ice ball diameter (25mm–75mm) to simulate diverse hailstone sizes.

Safety First: Enclosed testing chamber with transparent polycarbonate shielding.

Emergency stop function and over-pressure protection.

User-Friendly Operation: Pre-programmed test modes for IEC/UL/ASTM standards.

Customizable Solutions: Optional environmental chamber (-40°C to +85°C) for extreme temperature testing.

Modular design for easy integration into existing QC lines.

Product Features

Dual-Station Testing: Simultaneous evaluation of two PV modules for accelerated workflows.

High-Speed Imaging: Built-in 1000fps camera captures impact dynamics for post-test analysis.

Automated Control: Programmable trajectory system for precise ice ball launch angles (0°–90°).

Real-time data logging (force, velocity, deformation) via USB/Ethernet.

Technical Parameters

Parameter Specification

Impact Energy Range 0.5 J – 50 J (adjustable)

Ice Ball Diameter 25 mm, 35 mm, 50 mm, 75 mm (standard)

Test Temperature Range -40°C to +85°C (with optional chamber)

Sample Size Max.

2200mm × 1400mm (dual-station)

Power Supply 220V/380V, 50/60Hz, 3-phase

Air Compressor Requirement 0.6–0.8 MPa, 1.2 m³/min

Dimensions (L×W×H) 3500mm × 2000mm × 2500mm
