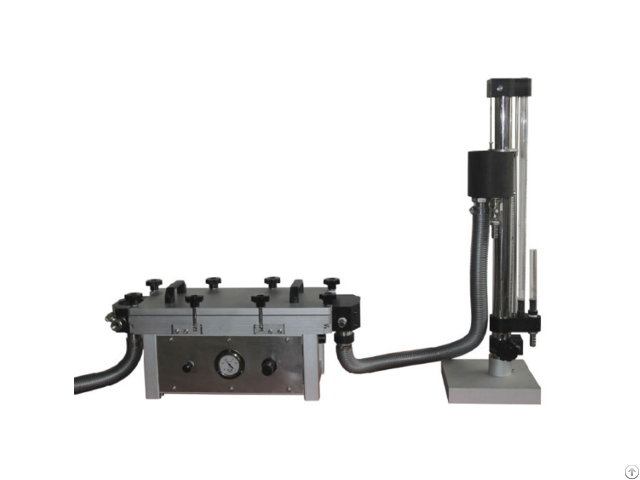

Plastic Drainage Board Horizontal Water Flow Tester - China
price: contact company for price
The Plastic Drainage Board Horizontal Water Flow Tester is used to evaluate the water flow characteristics of plastic drainage boards under specified lateral pressure and hydraulic gradient conditions.
It measures the amount of water that passes through the board over a set period, helping manufacturers and engineers assess drainage efficiency, product quality, and performance in civil engineering and construction applications.
Standards
(1)JTG E50 T1143-2006 (2)SL/T 235-26-2012 (3)JT/T 521 Appendix A-2004 (4)JTS-206-1 Appendix B B.
3-2009 (5)JTS/T245-2023 Technical Parameters
Parameter Specification
Test chamber structure Openable
Effective specimen length 400 mm
Specimen width 100 mm (customizable)
Lateral pressure 350 ± 20 kPa (pressure gauge accuracy: 0.4% FS)
Hydraulic head adjustment range 0–400 mm
Accuracy 0.4%
Dimensions Main unit: 715 × 300 × 260 mm; Water tower: 440 × 440 × 860 mm
Weight 35 kg
