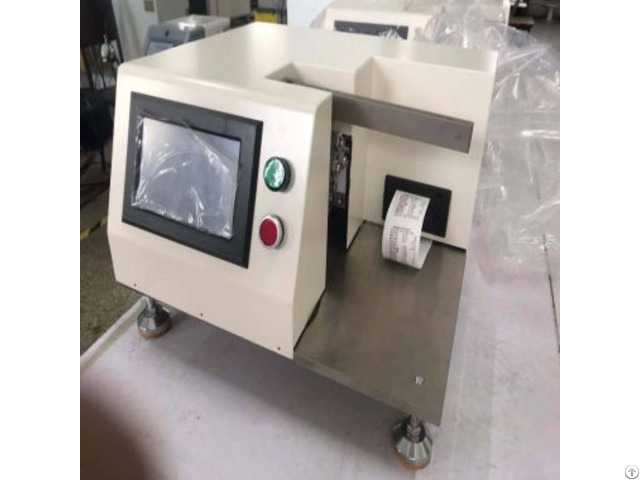

Plastic Tribological Properties Tester - China

Product Description:

Plastic sliding friction wear tester consists of two main parts: the host machine and intelligent control system, which can be operated through the control system, and can display the value, torque, and time during the test process, display the current test value, and print out the test report of the standard requirements.

This equipment is equipped with a water bath box, so that the specimen is completely in the water for friction and wear test, widely used in ships, warships, submarines, propellers, high polymer water lubrication bearing material friction and wear test, all-round simulation of the specimen materials and products in the actual use of the process of working conditions.

Make the experimental process and data more real and reliable.

Standard:

GB3960-2016 Features:

1 - motor: the use of high-precision speed motor, accurate control of the speed of the mechanism, to meet the requirements of experimental accuracy.

2 - transmission system: the use of high-precision synchronous belt transmission, transmission efficiency of more than 98%, to ensure that the number of revolutions and torque on each friction ring is exactly the same, to further enhance the experimental accuracy of the product.

3、M-200B water bath box: the end face is made of acrylic material, the appearance is clean, beautiful and atmospheric.

In the experimental process the experimenter can observe the specimen in the water to do the experiment scene, so that the whole process of the experiment as far as the eye can see.

And when we need to not do experiments in the water when you can pull out the water bath box at the lower end of the sealing cover, let go of the water, which is the water bath box can also be used as a receiving box, to prevent experiments when the friction off the powder affects the environment of the equipment and test bench.

Water bath box metal frame using SUS316/SUS316L stainless steel material to do the frame, so that the water bath box solid, reliable, durable and other advantages.

4、Sensor: The sensor accuracy of this instrument can reach 1% FS, 5、Lever system: The lever system in this equipment, using Archimedes' law of leverage formula for the design, in the processing of weights and levers of the density and size of a rigorous calculation, to ensure that the friction ring right above the force value is accurate.

6 - end sealing system: this sealing system adopts fixed ring and moving ring sealing, fixed ring and moving ring sealing surface roughness is as high as 0.2 - Technical Parameters：

Sample size under test 30*7*6 (mm) Rotation speed 200 rpm Load 20KG (196N) ±1% Friction ring size φ40×10mm, chamfer 0.5×45°, deviation of concentricity between outer surface and inner circle is less than 0.01 Friction torque 0--4N-m Friction ring material Quenched 45-gauge steel, heat-treated HRC40-45 - surface finish of outer circle Velocity accuracy 1% Friction torque accuracy 1% Sensor measurement accuracy 1% FS Load accuracy 0.5% Counter accuracy 1S Control method microcomputer control Instrument size (mm) Instrument weight (kg) 600*400*600 Sample size under test 80
