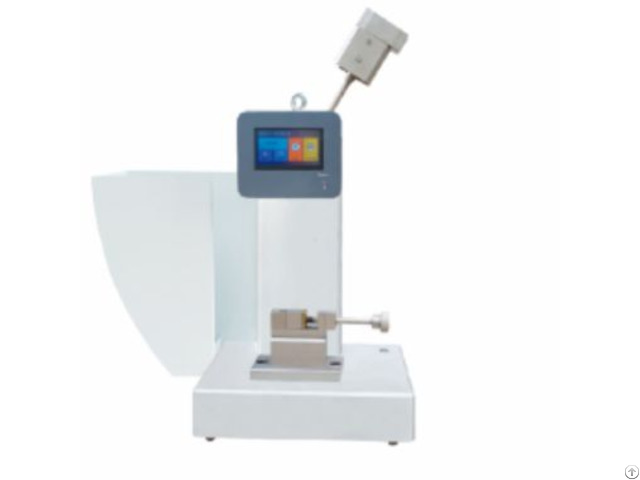

Plc Liquid Crystal Touch Impact Testing Machine Simple Suspension - China

Product Introduction:

Liquid crystal touch impact testing machine is mainly used for hard plastics (including sheet, pipe, plastic profile), reinforced nylon, glass fiber reinforced plastic, ceramic, cast stone, electrical insulation materials and other non-metallic materials impact toughness measurement, widely used in the chemical industry, scientific research units, universities and other quality testing departments.

Standards:

GB/T 11022-2020 - GB/T 3906-2020 - JB/T 10840-2008 - GB/T 7251.1-2013, GB/T 7251.4-2017 - GB/T 7251.5-2017, GB/T 20641-2014 GB/T 20138-2006, GB/T2423.55-2006, Q/GDW11008-2013 Main features:

Not poor quality: the use of high hardness and high-precision bearings, and the use of shaftless photoelectric sensors, fundamentally eliminate the loss caused by friction, to ensure that the friction energy loss is far less than the standard requirements.

Intelligent prompt: According to the impact of the situation, intelligent prompt working status, always interact with the experimenter, to ensure the success rate of the test.

Friendly interface: there are parameter setting interface - result query interface - measurement interface - system setting interface, each operation has a clear user prompt, you can record 10 test records, you can choose domestic and international standards, you can choose Chinese and English.

Accurate measurement: In full accordance with the provisions of the new standard, after 10 swing cycles for a calculation of energy loss, each measurement to go through 3 times to average, to ensure the accuracy of energy loss.

Performance parameters:

1 - Simple beam impact testing machine - Impact speed: 2.9m/s - Impact energy: 1/2/4/5J - Maximum friction loss energy: <0.5% - Pendulum prelift Angle: 150±1° - Strike center distance: 230mm - Power supply: 220VAC-15% —— 220VAC+10%, 50Hz(single-phase three-wire system) 2 - Cantilever beam impact testing machine - Impact speed: 3.5m/s - Impact energy: 1J; 2.75 J; 5.5 J; 11J; 22J(3 hammers, customer's choice) - Maximum friction loss energy: <0.5% - Pendulum prelift Angle: 150±1° - Strike center distance: 335mm - Power supply: 220VAC-15% —— 220VAC+10%, 50Hz(single-phase three-wire system)
