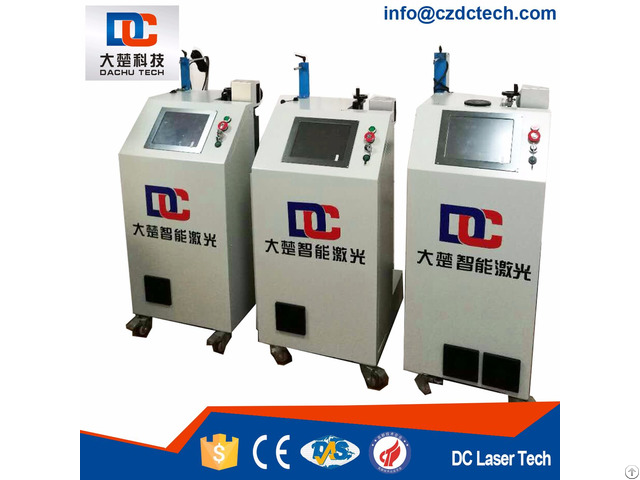

Portable Fiber Laser Marking Machine Printing For Plastic Single Pipe Extrusion Line With Cover - China

Technical Parameters:

Laser working material:

Yb-doed fiber

Laser wavelength:

1064nm

Laser power:

20W

Modulation frequency:

20 kHz -180 kHz

Scanning speed:

0 -12000 mm/s

Marking area:

110mmX110mm (Optional)

Making depth:

0.01 mm -0.2mm(depend on material)

Marking line width:

0.01 mm -0.1mm

Minimum character:

0.2mm

Positioning accuracy:

0.01mm

Input power:

＜200W

Cooling:

air

Power Supply:

AC220V±10%, 50Hz

Continuous working time:

24H

Marking samples of Plastic profile

Black PVC profile, White PVC profile, Grey PVC profile, etc.

Main Parts List of DC-GP-20BW Fiber Laser marking machine

No.

MAIN COMPONENTS

SPECIFICATIONS

PLACE OF ORIGIN

1

LASER

20W PULSE FIBER LASER

CHINA MAINLAND

/ GERMAN

2

SCANNING GALVANOMETER

DIGITAL TEMPERATURE CONTROL

CHINA MAINLAND

/ GERMAN

3

TOUCH SCREEN

10' LC

TAIWAN, CHINA

4

FILED LENS

F=254MM MARKING AREA OPTIONAL

SINGAPORE

5

RED LIGHT POSITIONING SYSTEM

650N

CHINA MAINLAND

6

MARKING SOFTWARE

FREE OF INSTALLATION

CHINA MAINLAND

7

ENCODER

ZSP3806-003G

CHINA MAINLAND

8

PORTABLE SUPPORT

TWO-DIMENSIONAL MOVABLE

CHINA MAINLAND
