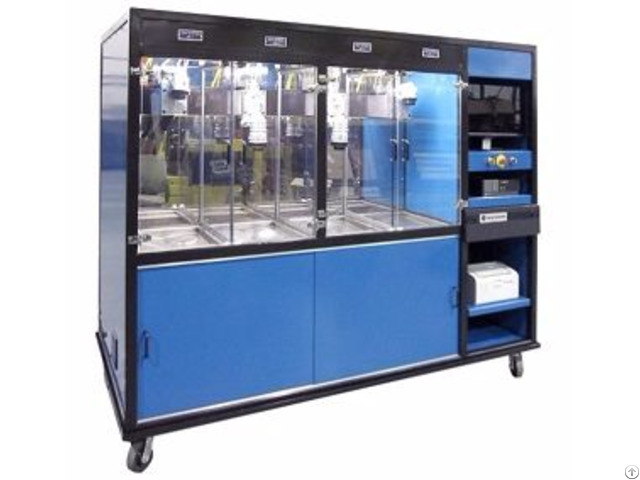

Pressure Impulse Test Stand - China

Pressure Impulse Fatigue Test Stand makes use of modern hydraulic control valve technology to provide a test stand that is simple to operate, accurate, and flexible.

The Impulse Test Stand is designed to test spin-on and cartridge type filter assemblies for their resistance to fatigue failure within their envelopes.

Standards

SAE HS-806 SAE oil filter test procedure.

ISO 4548-5 Methods of test for full-flow lubricating oil filters for internal combustion engines.

Part 5: Test for cold start simulation and hydraulic pulse durability.

Applications It is suitable for lubricating oil filters, hydraulic oil filters and fuel oil testers, including spin-on type and cartridge type filters.

Technical Parameters

Items Parameters

Frequency range Square wave: 0-3Hz; Sine wave: 0-5Hz

Pressure range 0-6900kPa(0-1000psig)

Pressure control Servo valve with closed-loop PID control

Oil temperature range Ambient temperature- 140℃(284℉)

Temperature control Automatic PID control, ±2℃

Oil tank volume 225L(60 gallon )

Oil tank and oil pipe material Stainless steel User interface, Controller and data acquisition

Items Parameters

CPU Dell OptiPlex w/ Intel Core™ processor

Operation system Microsoft Windows 7

User interface 22’’ LCD, keyboard and mouse

APP software Customized LabView, graphical display

Data output Test report output in the form of forms and graphs, xlsx format Application requirements

Items Parameters

Power 480 Vac/3Ph/ 60Hz/40A (International voltage applicable )

Cooling water 12 lpm (3 gpm) @ 30℃ (85 ℉)

Operation temperature 10-40 ℃(50-104℉)
