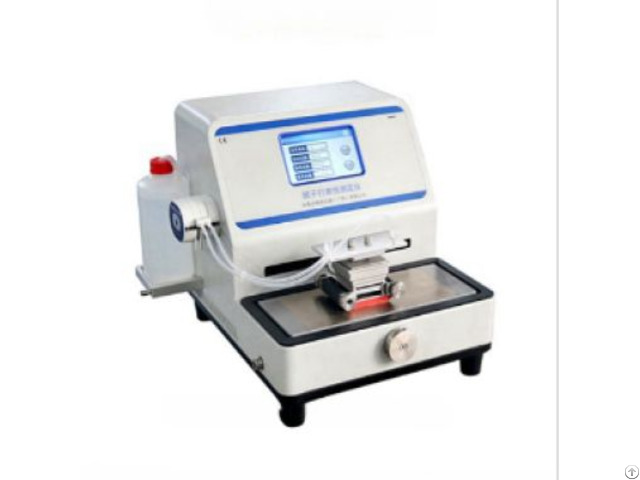

Putty Sanding Tester - China

Standard

GB/T 1770 YC/T 315-2009 GB/T 1749-2025 Technical parameters

The technical parameters of the putty sanding tester may vary from model to model, but usually include the following aspects: Friction speed: Generally adjustable in the range of 0——190 times/min (one way), the specific speed can be set according to test requirements.

Test stroke: usually 155mm, that is, the movement distance of the grinding head on the sample.

Setting range: The range of grinding times that the counter can be set, generally 0——9999 times (one-way count), and the two-way count needs to be multiplied by 2 - Load: The load of the grinding head includes the weight of the grinding head itself (such as 570+±15 grams) and the counterweight block that can be added (such as 50+3 grams, 100+4 grams, 200+7 grams each) to simulate different grinding pressures.

Test template specifications: generally tinplate, size 50x120mm or 200mmx80mm(thickness 0.3——1.5mm), the specific size may vary depending on the instrument model.

Power supply and power: Usually 220V 50Hz/60Hz power supply, the power is about 40W.

Dimensions and weight: Dimensions may vary depending on the instrument model, but are generally compact and easy to operate; The weight is also within an acceptable range for easy movement and placement
