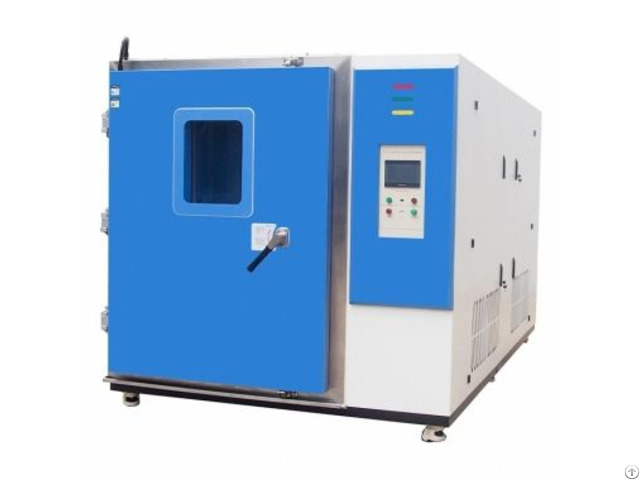

Pv Degradation Testing Chamber - China

Features and Benefits

1 - The humidity can be adjusted in the range of 20%-98%, the temperature can generally reach -60 ° C to 100 ° C, and the wet freezing test can be set in the relative humidity of 85% and the temperature of -40 ° C.

2 - In addition to the conventional wet freezing test, it can also be done such as wet heat, heat cycle test.

3 - On the basis of the standard PV degradation testing chamber, the functions of salt spray and rain can be customized, so that a variety of aging tests can be carried out in the same equipment.

4 - Multiple wet-freezing cycles can be completed in a short time, and multiple photovoltaic panels can be placed at a time to accelerate the aging process of photovoltaic modules.

Specifications

Model STD PV-04 Internal Dimension (mm) 1300*700*1350 Overall Dimension (mm) 1900*1100*1750 Interior Volume 1220L Parameter Temperature Range -60℃ ～ +100 ℃ Temperature Fluctuation ± 0.5 ℃ Temperature Deviation ± 2.0 ℃ Humidity Range 20% ~ 98% RH Humidity Deviation ± 2.5% RH Temperature Change Rate 1 ~ 3.4℃ / Min Panel Size 1M*2M Panel Capacity 4 / 6 / 8 / 10 / 12 Pieces Controller Programmable color LCD touch screen controller Ethernet connection, PC Link, USB Humidity Water supply system Automatic water supply Water supply system Water purification system Humidifier External isolation, stainless steel surface evaporation humidifier Dehumidification Evaporator Sensor Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ Humidity Sensor Dry and wet bulb sensor Build-in Water Tank(mm) 270*300*450 View Window Size(mm) 330*370 Air Circulation Centrifugal wind fan Safety Device Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection
