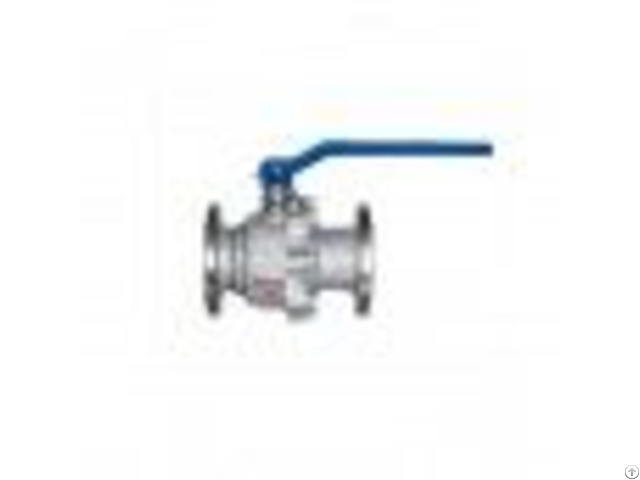

Q41f H 16c 25 40 64 Cast Steel Flanged Ball Valve - China

Product Description

Medium temperature: ≤220℃

Medium: water, oil, steam, etc.

Operation mode: manual

Caliber: DN20-200

Pressure: 1.6mpa

Body material: WCB

Connection method: flange Main parts and materials

Parts name Material

Valve body WCB

Ball, Stem Stainless steel

Seal ring F4, Stainless steel+H Function and specification

Type NominalPressure(MPa) Testing pressure SuitableTemperature(℃) Suitablemedium Strength(Water)(MPa) Enclose(Water)(MPa) Q41F H-16C 1.6 2.4 1.8 ≤200 水, 蒸汽, 油品

Q41F H-25C 2.5 3.8 2.8 Q41F H-40C 4.0 6.15 4.51 Q41F H-64C 6.4 9.75 7.15 Dimensions and connection dimensions

Type Nominal diameter(mm) Measurement(mm)
