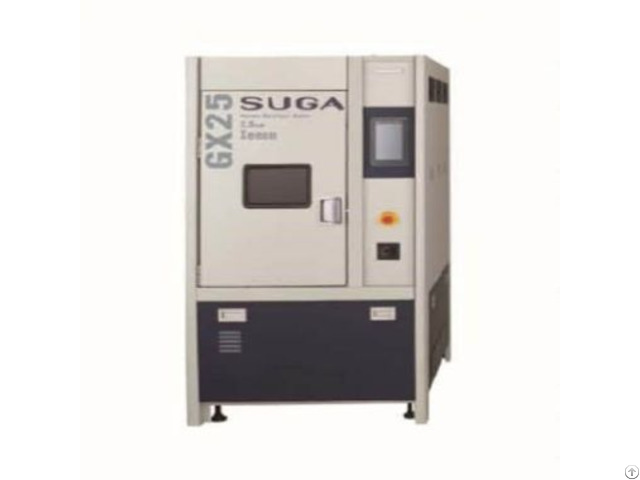

Qinsun Gx25 - China

GX25 is designed to artificially reproduce indoor deterioration factors such as sunlight, temperature and humidity.

GX25 exposes materials to these factors and accelerates the deterioration process to predict their lifespan in a relatively short perioid of time.

The light source is “2.5kW water-cooled xenon arc lamp” developed by SUGA closely resembling the sunlight and it can control the irradiance between 40W/㎡ and 60W/㎡(at 300-400nm).

Standard：

GX25 conforms to light resistance tests for textiles, ISO, ASTM, and AATCC.

Feature：

1 - Wide range of control for temperature and humidity.

2 - Established the Irradiance and Temperature Direct Control System on a Specimen Plane 3 - Vapor system 4 - SUGA Air Blender Specification：

Light source Xenon-arc lamp WX2.5(2.5kW water-cooled type) Filter: Daylight filter(The other filters such as Windows Glass, Extended UV, etc, are available as option.

) Test condition Light-on, Light-off [Option: Light-on and surface spray.

Light-off and back spray, Light-off and surface and back spray] Irradiance 40 to 60W/㎡(at 300 to 400nm) [Option(Measuring Wave length control): 340nm, 420nm] Temperature and humidity range Light test: 55 to 110±2℃ of Black Panel Temperature (BPT;depending on irradiance); 30 to 70±5%rh(at 63℃ of BPT and 42W/㎡) Dark test: 38±2℃ of chamber air temperature, 95±5%rh [Option: BST(Black Standard temperature)60 to 115℃(depending on irradiance) Number of specimens Maximum 108pieces(65 x 55 x 1mm) External dimension of the instrument Approx: width 100cm, depth 125cm, height 180cm, weight400kg Electrical requirements 3phase 200V approx.

43A 50/60Hz Related standards ISO 4892-2 - ISO 16474-2 - ISO 105-B02 - ASTM G155 - AATTC TM16 - AATCC TM169 etc.

(depending on test cycles)
