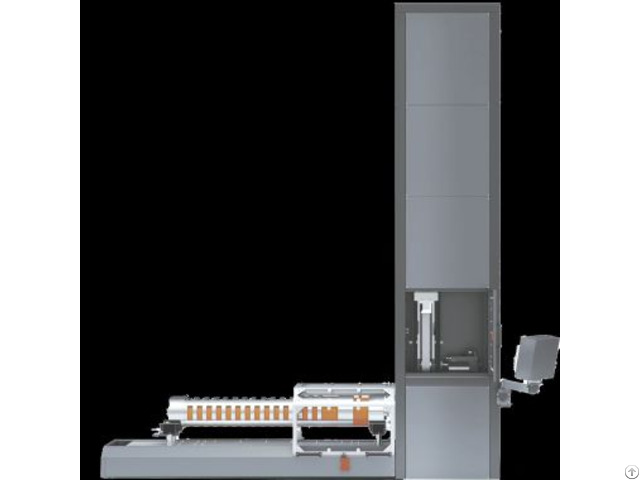

Rapid Crack Propagation Meter - China

Standard ISO 13477: Designed exclusively for determining critical pressure (Pc) and temperature (Tc) in polyethylene pressure pipes during rapid crack propagation.

Product Features

Motorized Strike System:

Electromagnetic actuator with 0–25 Bar hydraulic boost.

3-stage impact energy calibration (10/15/20 m/s).

Cryogenic Chamber (1671 Model):

Liquid nitrogen cooling with <5°C gradient across 1.2m chamber.

Auto-defrost cycle prevents ice buildup.

Pressure Control:

Proportional valve system maintains ±0.1 Bar stability during testing.

Explosion-proof pressure vessels rated to 30 Bar.

Safety Systems:

Dual-layer acrylic shielding with interlock sensors.

Emergency venting system activates within 50ms.

Software Suite:

CrackVision 3D™: Synchronizes pressure, temperature, and high-speed video data.

Cloud RCP™: Remote monitoring for global teams with API integration.

Technical Parameters

Specification Model 1629 Model 1671

Max.

Pipe Ø 250 mm 500 mm

Impact Velocity 10/15/20 m/s 10/15/20 m/s

Test Pressure 0–25 Bar 0–25 Bar

Temperature Range -20°C to +60°C -40°C to +60°C

Power Supply 220V/50Hz (110V/60Hz) 380V/50Hz 3-phase

Footprint 1, 500mm × 1, 200mm 2, 400mm × 1, 800mm

Weight 850 kg (net) 1, 600 kg (net)
