Rattle Tester - China

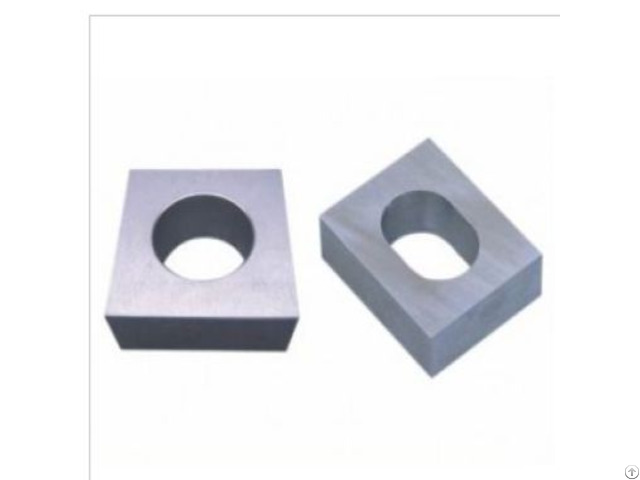

Bell Rattle Toy Tester

Also known as: Sound-emitting toy tester Toy test template AB Anti-choking test device Simulates children's oral cavity capacity to detect potential choking hazards from toys or accessories.

Compliance Standards & Specifications

Specification Elliptical Tester Circular Tester

Standards US: 16CFR 1510 / ASTM F 963 4.6.2

EU: EN71-1998 8.16

China: GB6675-2003 A.

5.3 US: 16CFR 1510 / ASTM F 963 4.6.2

China: GB6675-2003 A.

5.3

Material Aluminum Alloy Aluminum Alloy

Dimensions 80×65×30mm (Ellipse) 72.6×72.6×30mm (Circle)

Weight 320g 320g

Test Procedure & Criteria

Testing Methodology: 1 - Secure the elliptical tester with clamps ensuring vertical alignment 2 - Position the toy in the most probable insertion orientation 3 - Apply only gravitational force during testing 4 - Observe complete penetration depth 5 - Repeat for spherical/circular-ended toys using circular tester Evaluation Criteria: - Toys shall NOT fully penetrate elliptical tester - Spherical/circular-ended toys shall NOT fully penetrate circular tester - Acceptable partial penetration ≤ 50% of total depth Special Cases: - For ball-shaped components: Perform 3 consecutive tests - Record maximum penetration depth for each orientation
