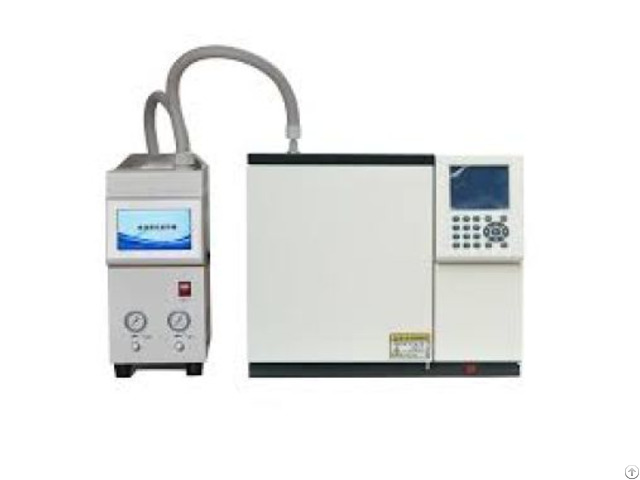

Residual Ethylene Oxide Gas Chromatograph Meter - China

Applicable standards:

The testing of ethylene oxide residuals is subject to strict international and national regulations and pharmacopoeial requirements to ensure patient and user safety: ISO 10993-7: 2021: "Biological evaluation of medical devices — Part 7: Ethylene oxide sterilization residuals.

" This is the definitive international standard specifying allowable limits for EO, ECH, and EG based on product contact duration and patient exposure, and outlines test methods.

United States Pharmacopeia (USP): Various chapters, notably those related to chromatography (e.g., USP ) and biocompatibility, which often reference ISO 10993-7 - European Pharmacopoeia (Ph.

Eur.

): Contains monographs and general chapters (e.g., 2.2.28 Gas Chromatography) that specify methods for the determination of residues of sterilizing agents.

Japanese Pharmacopoeia (JP): Also includes methods for testing residual solvents and sterilizing agents.

National Standards (e.g., GB/T 16886.7 in China): Many countries have adopted or developed national standards that are equivalent to or aligned with ISO 10993-7 - Product Advantages:

High Accuracy and Sensitivity: Capable of detecting trace amounts of EO, ECH, and EG (often in the parts per million or µg/g range), essential for regulatory compliance.

Compliance Assurance: Designed to meet the requirements of key international standards and pharmacopoeias (ISO 10993-7 - USP, Ph.

Eur.

), ensuring validity of test results for regulatory submissions.

Reliable Detection: Utilizes the highly sensitive Hydrogen Flame Ionization Detector (FID) for robust and consistent detection of carbon-containing compounds.

Automated Sample Preparation: Often features automated headspace samplers, reducing manual labor, improving reproducibility, and enhancing safety by minimizing exposure to EO.

Comprehensive Data Analysis: Advanced software provides detailed chromatograms, quantitative results, and reporting capabilities, simplifying data interpretation and compliance documentation.

Ensures Product Safety: Directly contributes to reducing medical risks by controlling residual toxins in sterilized medical supplies, protecting patients and healthcare workers.

Technical Parameters:

1 - Precise EPC electronic flow control, controlling the flow or pressure of 18 gas channels.

2 - Independently temperature-controlled injectors, with the option to install up to three injectors.

3 - High-precision temperature control with 10 independent temperature control zones.

4 - Brand-new detector design significantly improves sensitivity.

5 - Six independent temperature control systems, suitable for installations requiring multiple temperature control channels, such as a converter.

The column chamber, vaporization chamber, hydrogen flame detection chamber, thermal conductivity detection chamber, auxiliary 1 - and auxiliary 2 chambers all feature a modular design, making installation and replacement easier.

6 - Power-off protection with automatic parameter memorization.

It also features immunity to sudden power fluctuations and a stopwatch function.

7 - Extensive self-diagnosis with a variety of diagnostic messages, displaying fault causes and solutions at any time.

8 - Fully integrated control workstation with three independent digital and three analog outputs.
