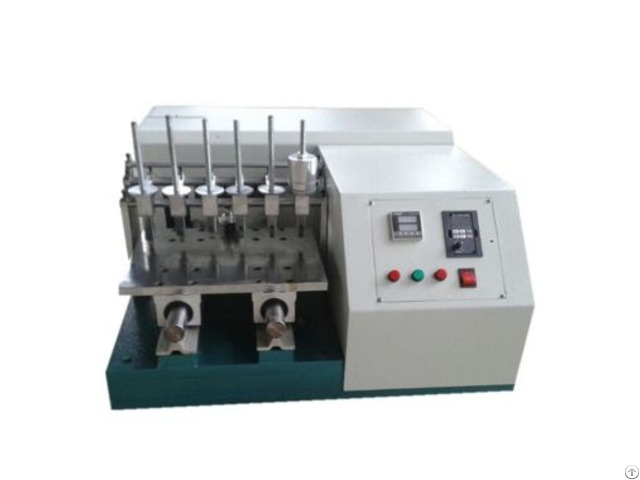

Rubber Hose Outer Layer Wear Testing Device - China

Product Introduction:

Rubber hose outer coating Wear testing machine for hydraulic hoses and other similar types of hoses with fabric or steel wire reinforced outer coating with a smooth and flat surface.

Test method:

1 - Install the assembled sample and mandrel on the test device, and ensure that the sample has no axial movement and (or) rotation.

2 - place the abrasive tool to make contact with the sample, apply the vertical static pressure F specified in the product standard, and start the machine.

If the force F is not specified in the product standard, the applied vertical static pressure should be 50N±0.5N.

3 - the test is carried out until the specified number of cycles is completed, and then the sample assembly is removed from the test device, and the sample with or without a core shaft is weighed again as the initial weighing.

It is important to remove any particles attached to the outer coating before weighing.

Test standard:

GB/T 12721-2007 - Determination of abrasion resistance of rubber hose outer coating ISO 6945: 1991 - Determination of the abrasion resistance of rubber hose cladding KS M ISO 6945-2013 - Determination of the abrasion resistance of the outer coating of rubber hoses EN ISO 6945-1996 - Determination of the abrasion resistance of rubber hose outer coatings DS/ISO 6945-1984 Determination of wear resistance of rubber hose cladding Main parameters:

1 - reciprocating frequency: 1.25Hz(45 RPM)

2 - cycle stroke: 200mm 3 - loading static pressure: 50N±0.5N(other pressure weights can be customized processing) 4 - Mandrel length: 150mm
